Replacing Drive/Electronics Box for Left Adaptive Headlight (Up To 09/06)




63 12 895 - Replacing drive/electronics box for left adaptive headlight (up to 09/06)





Warning!
Version with xenon headlights: Danger to life due to high voltage! Therefore, before removing, disconnect all components from the power supply (lighting system and ignition off).
Work on the entire xenon lighting system (ignition unit, control unit and lamp) may only be carried out by specialist personnel.





Important!
Read and comply with notes on protection against electrostatic damage (ESD protection) 61 35 ... Notes on ESD Protection (Electro Static Discharge).





Necessary preliminary tasks:
- Remove left headlight Removing and Installing/Replacing Left Headlight (Xenon Headlight)

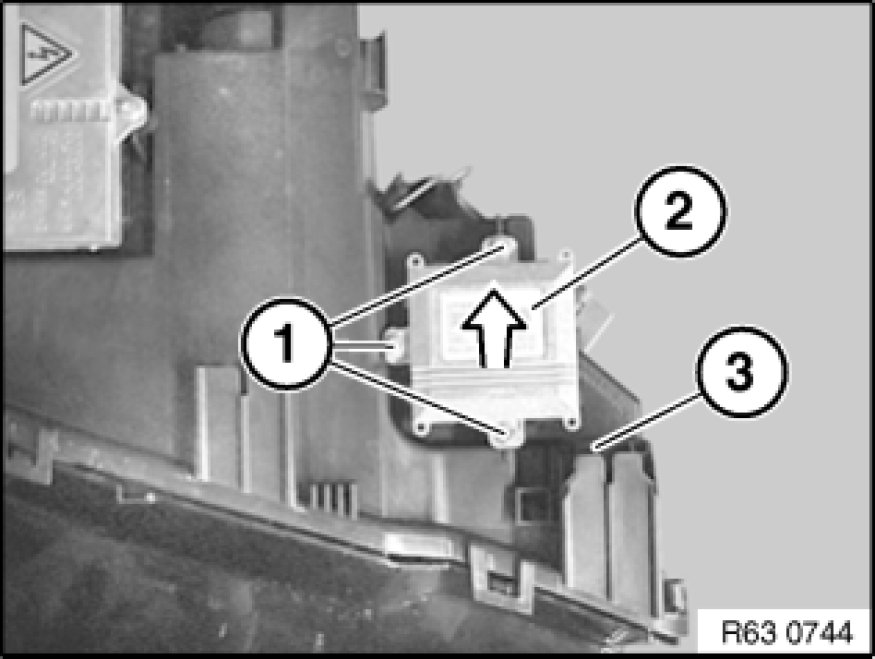

Release screws (1). Tightening torque 63 12 11AZ [1][2]Headlamp.
Remove drive/electronics box for adaptive headlight (2) in direction of arrow from headlight (3).





Installation Note:

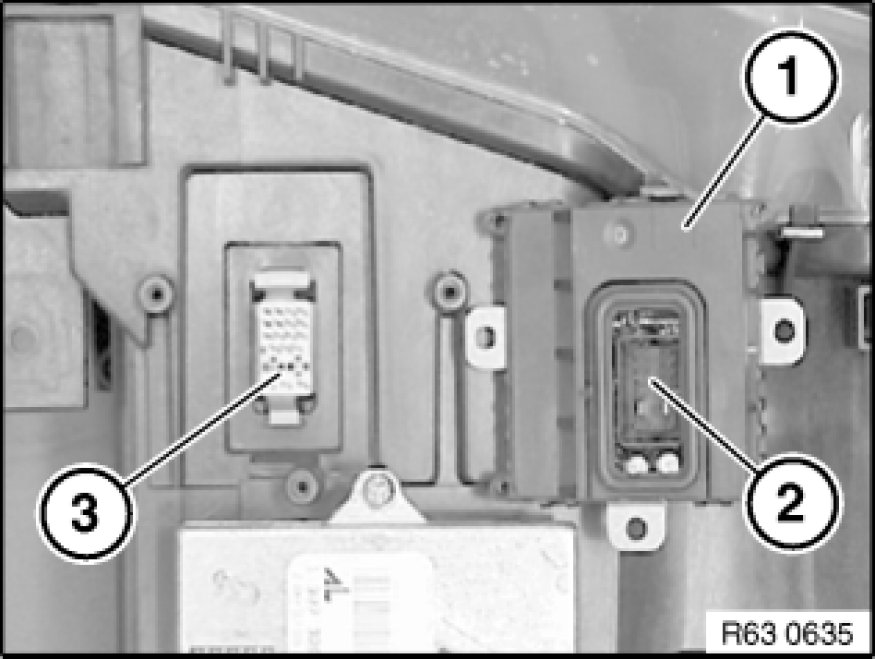

Fit drive/electronics box for adaptive headlight (1) exactly on headlight.
Make sure pin housing (2) is correctly seated in plug housing (3).





Carry out vehicle programming/coding Programming and Relearning.
