Steering Control Module: Service and Repair

32 43 521 - Replacing Servotronic control unit

Important!
Read and comply with notes on protection against electrostatic damage (ESD protection) 61 35 ... Notes on ESD Protection (Electro Static Discharge).

Necessary preliminary tasks:
- Remove ignition key
- Disconnect battery negative lead Disconnecting and Connecting Battery Negative Lead
- Remove glovebox 51 16 360 Removing and Installing Right Glove Box

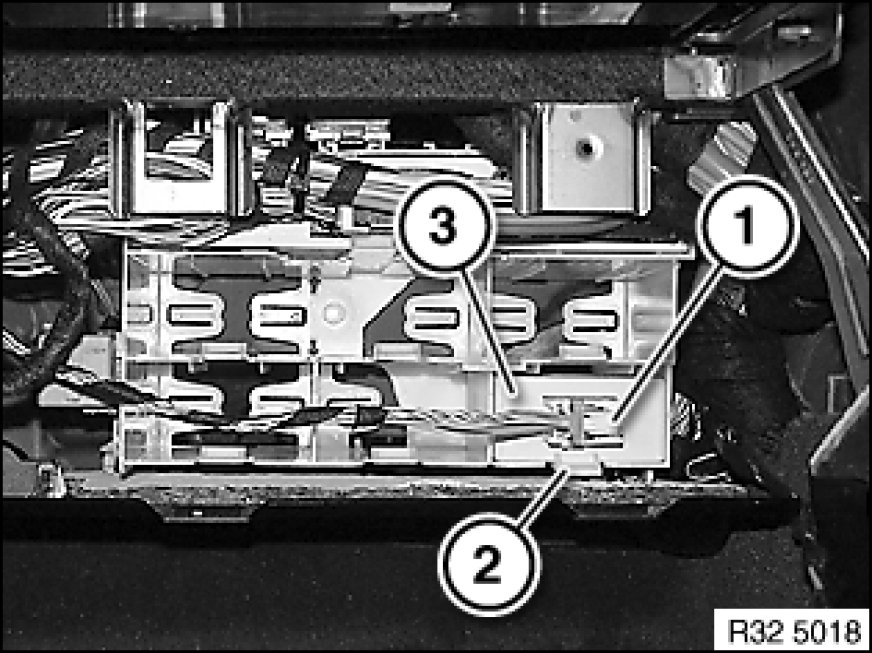

Disconnect plug connection (1).
Unlock catch (2) and remove control unit (3).

After installation:
- Replacement only: Carry out programming/coding Programming and Relearning
