Replacing Cross-Member For Transmission Mounting

22 32 050 Replacing cross-member for transmission mounting
Remove exhaust system.
Remove heat shield at front left and right.
Support transmission with hydraulic lifter.

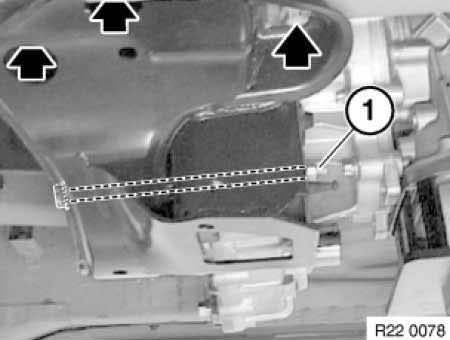

Release nut (1) and remove screw.
Unscrew left and right bolts.
Remove cross-member.
