Cabin Temperature Sensor / Switch: Service and Repair
Removing And Installing/Replacing Interior Temperature Sensor (A/C Control)Remove trim for pedal assembly.

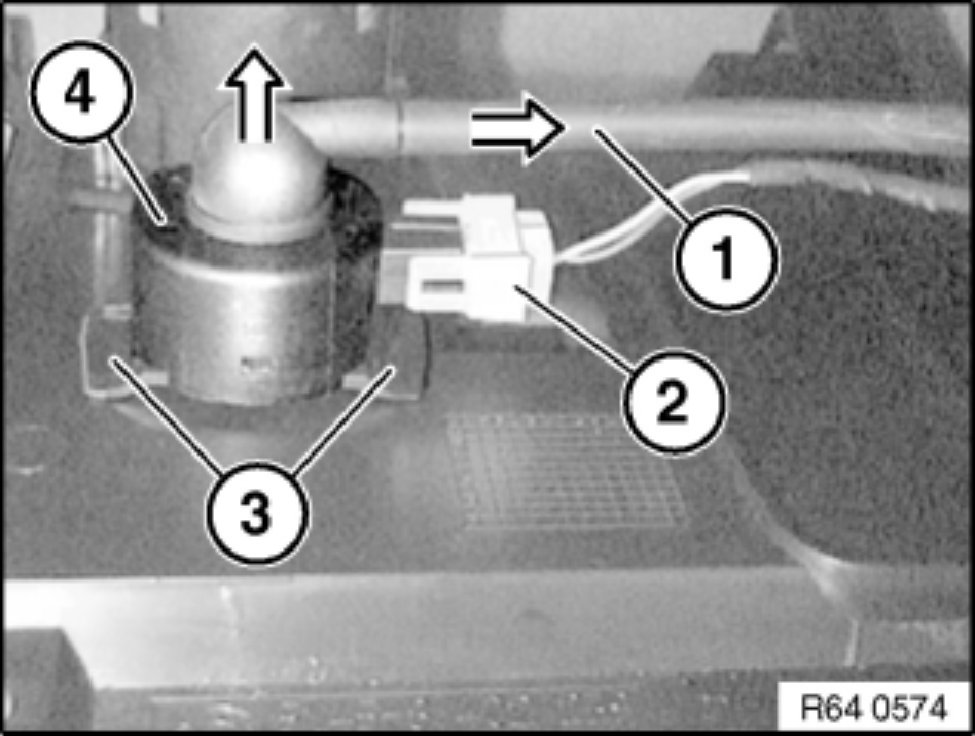

Detach hose (1) in direction of arrow.
Disconnect connector (2).
Unlock catches (3) and remove temperature sensor (4) in direction of arrow.
