Replacing the Controller For the Rear Fan




Removing And Installing/Replacing The Controller For The Rear Fan

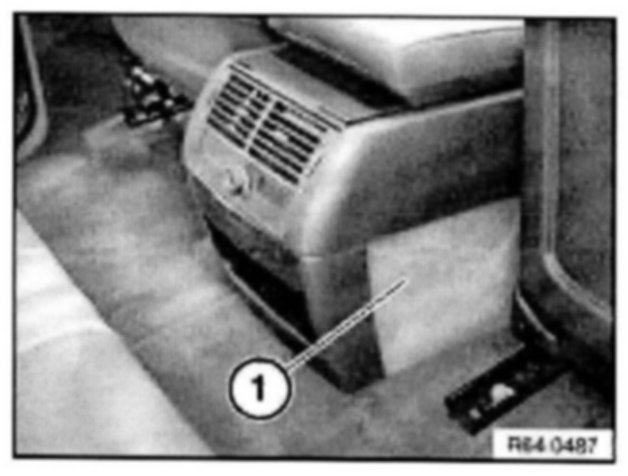

Unclip cover (1) on right on storage tray.

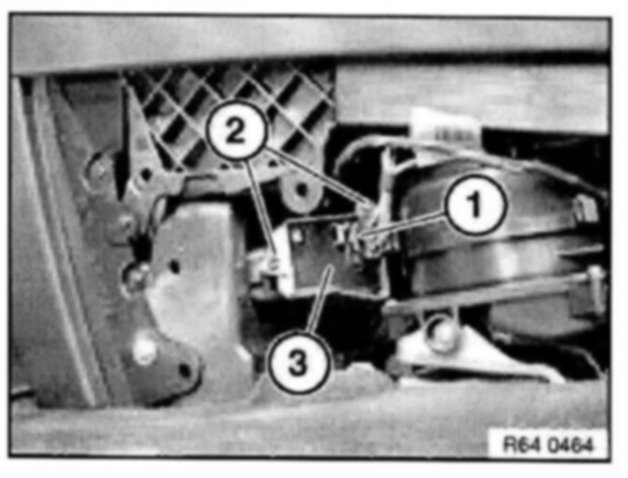

Unfasten plug connection (1).
Release screws (2) and pull out controller for rear compartment fan (3).
