Power and Ground Inputs

POWER AND GROUND INPUTS

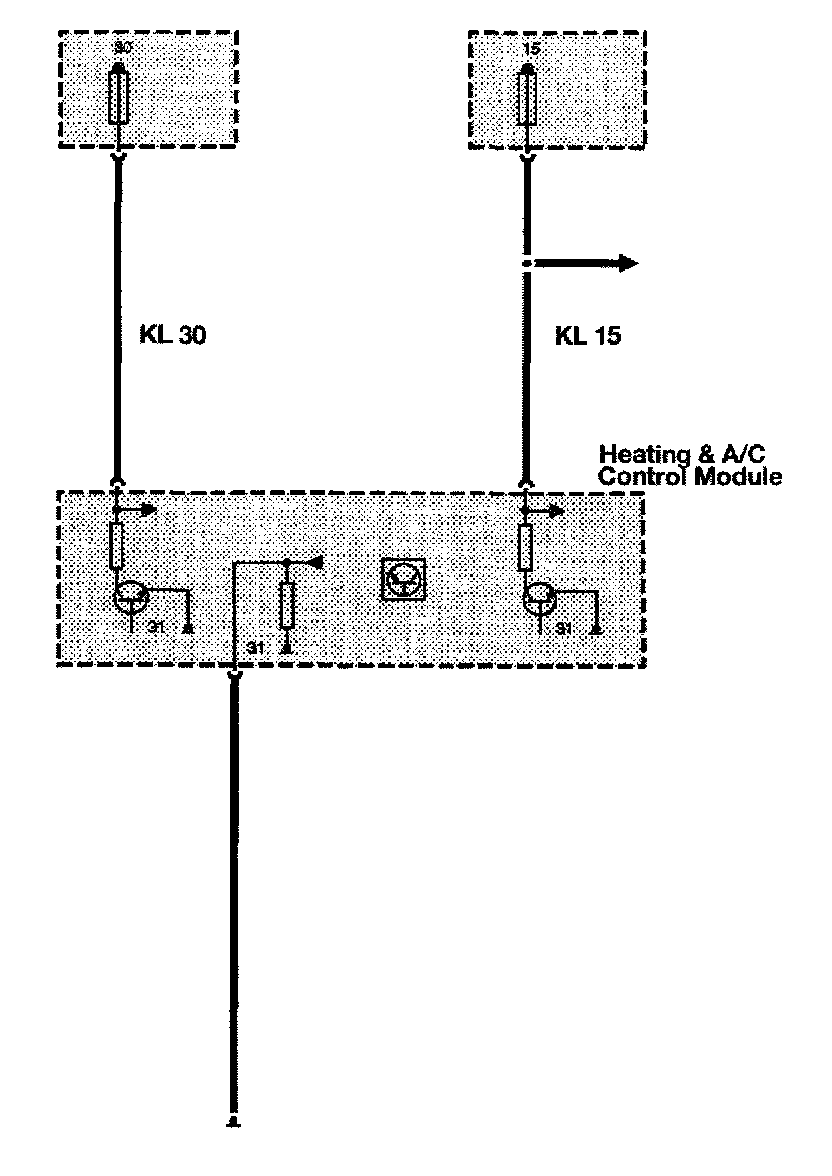

Constant battery power supply (KL30) is necessary for IHKA operation as well as memory (early systems).

For the "battery draw test" refer to 16 minute "sleep" mode.

Switched ignition power (KL15) is required for IHKA operation when the ignition is in the "run" position. This allows the system to operate after the vehicle has been started (or limited IHKA operation if the engine is not running).

Grounds KL 31

Ground paths are provided to the and output control functions. IHKA to complete the circuits of the inputs, processing, and output control functions.
