Tire Pressure Module: Service and Repair
Removing and installing/replacing RDC control module Removing glove box.

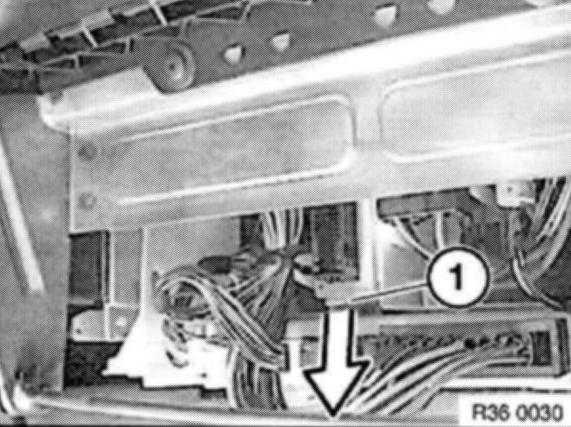

Unfasten plug connection (1) and disconnect.

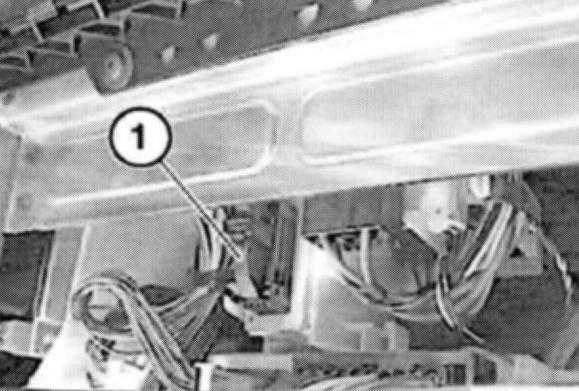

Press lock (1) downwards.

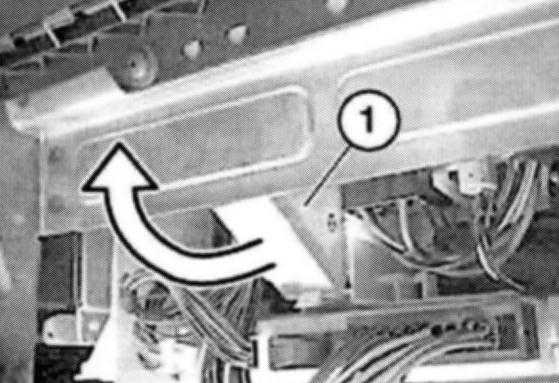

Tilt RDC control module (1) upwards, turn through 90° and remove vertically towards bottom.
Note: Do not damage control module carrier.
