Relay Box/Panel

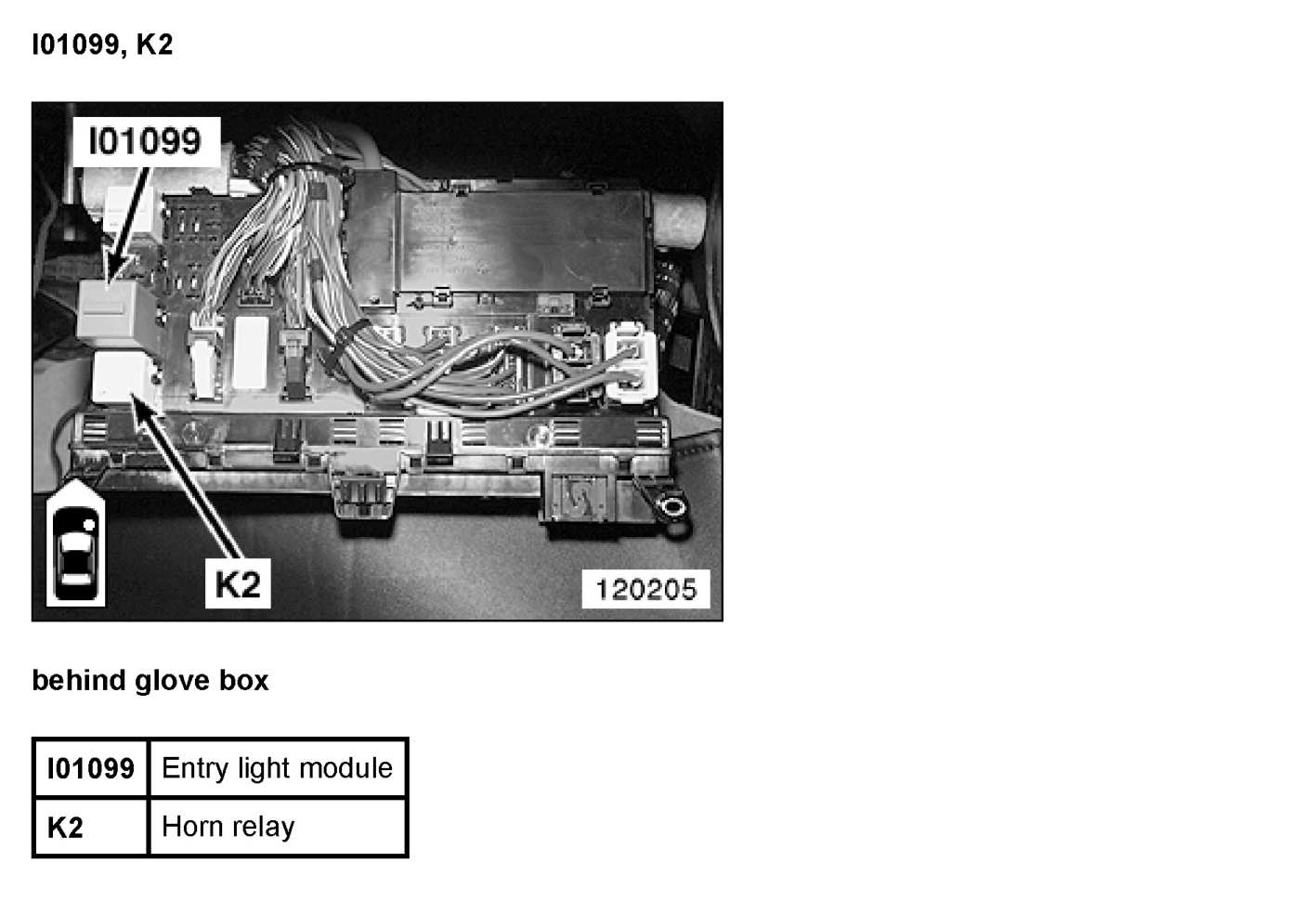

Relay Box/Panel Locations The main relay panel is located under the right side of the dashboard, behind the glovebox.

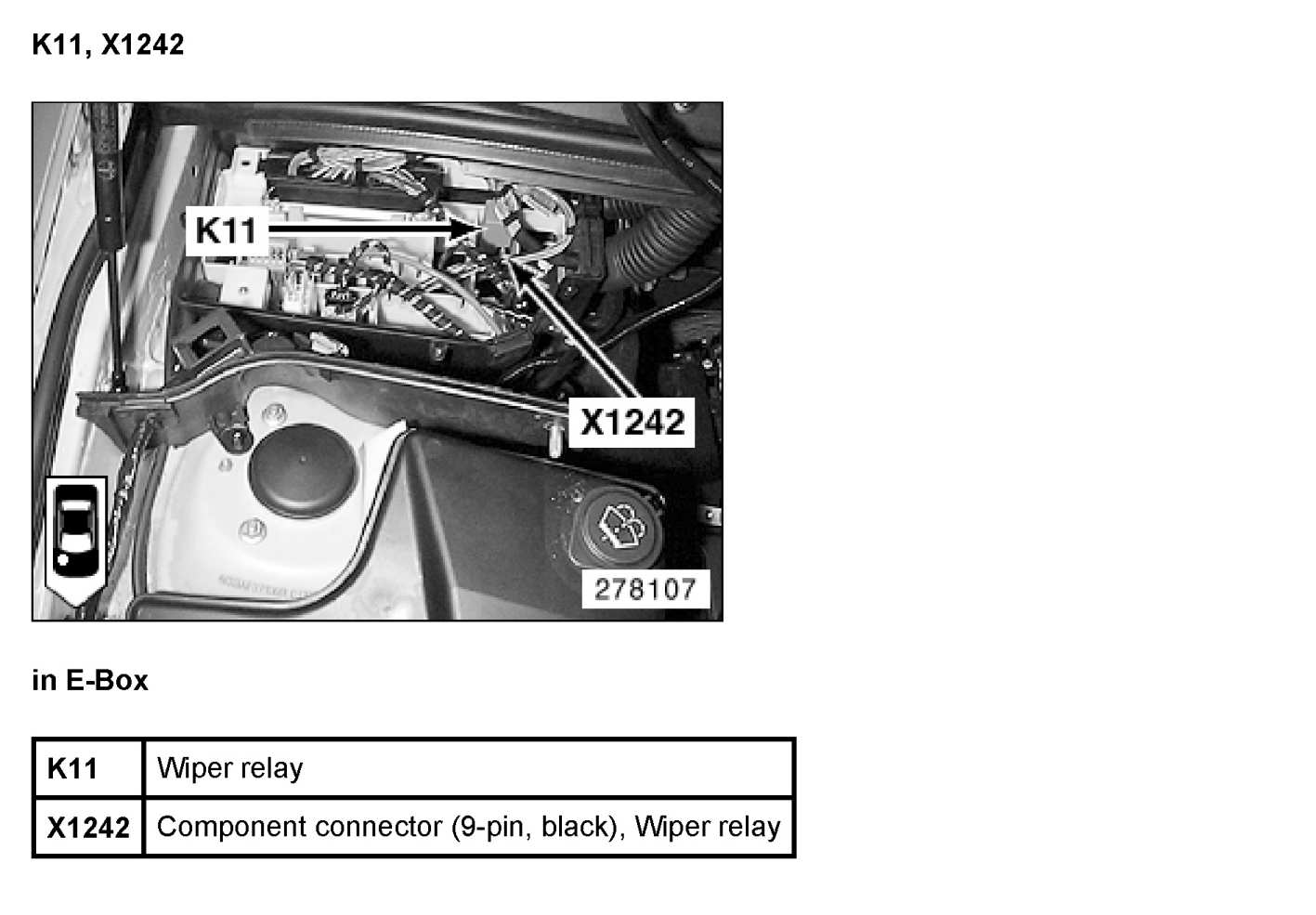

The E-box is located in the right rear of the engine compartment, under a plastic cover.

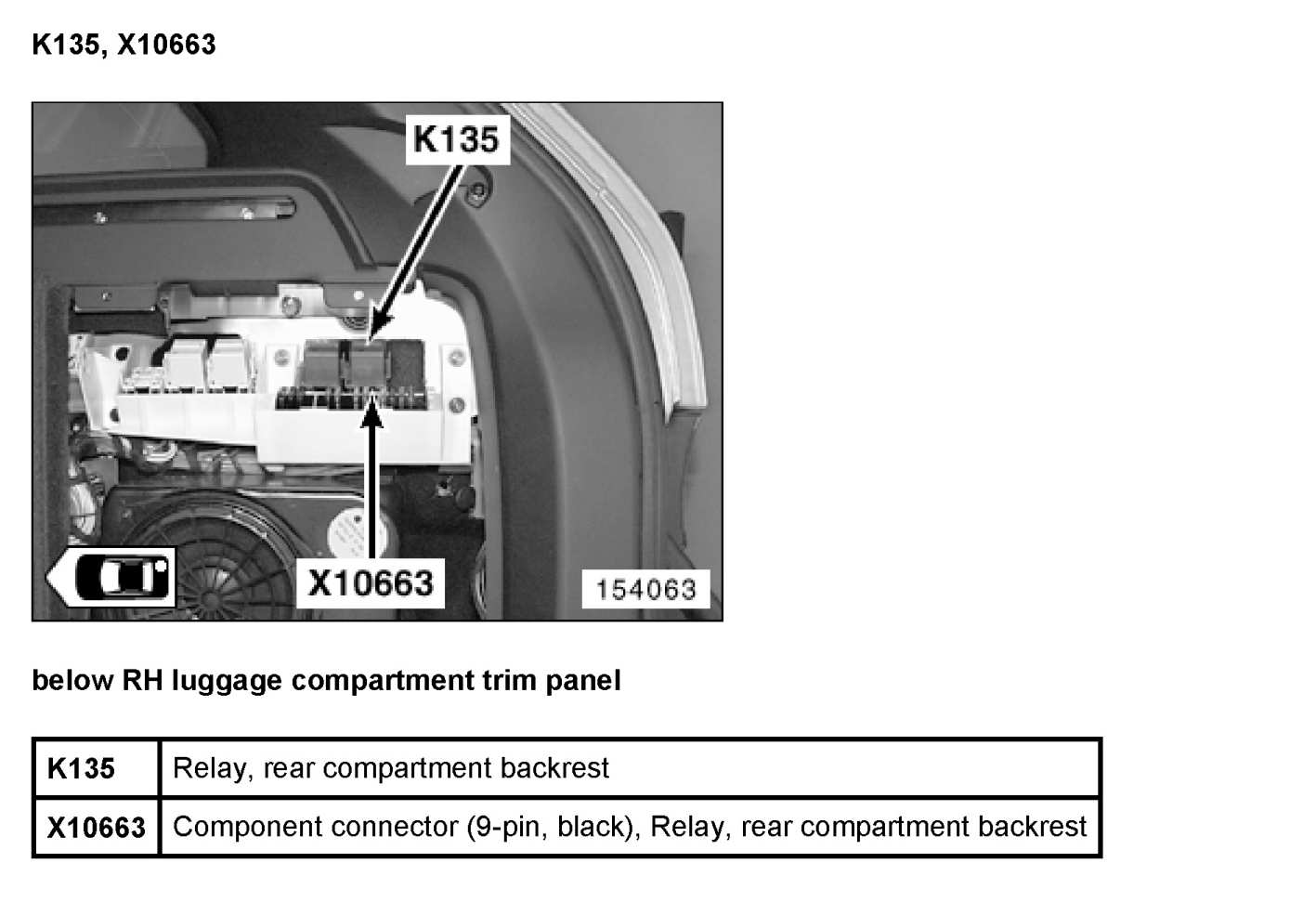

The rear fuse/relay panel is located in the right rear side section of the luggage compartment, behind the trim panel.
