Accelerator Pedal Position Sensor: Service and Repair
Removing And Installing/Replacing Pedal Travel Sensor (M62, M54)(for work step number 13 00 002)
Switch off ignition.

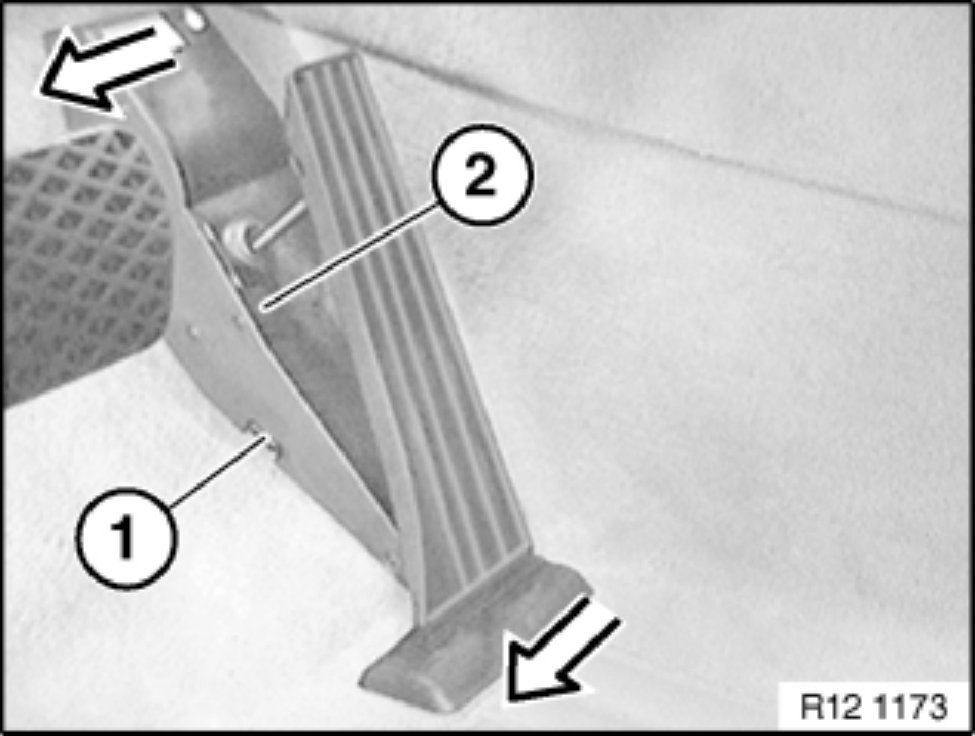

Carefully press down locking lug (1) and pull out accelerator pedal module (2) at side.

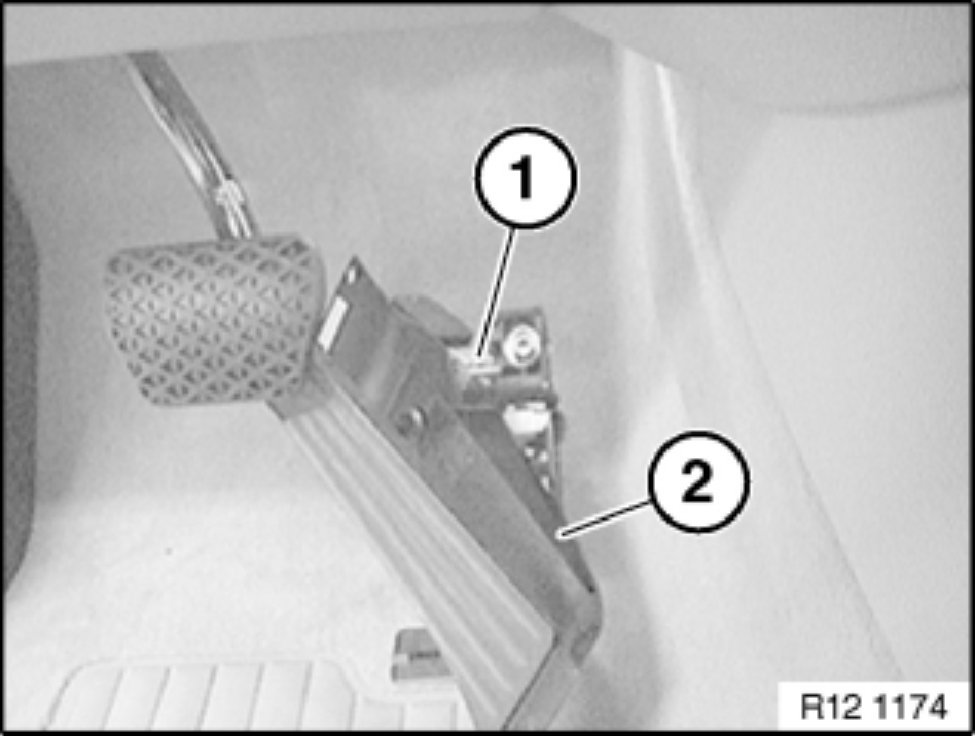

Detach plug (1) from accelerator pedal module (2).
