Replacing Pitch Sensor

Removing And Installing/Replacing Pitch Sensor

Remove right glovebox.

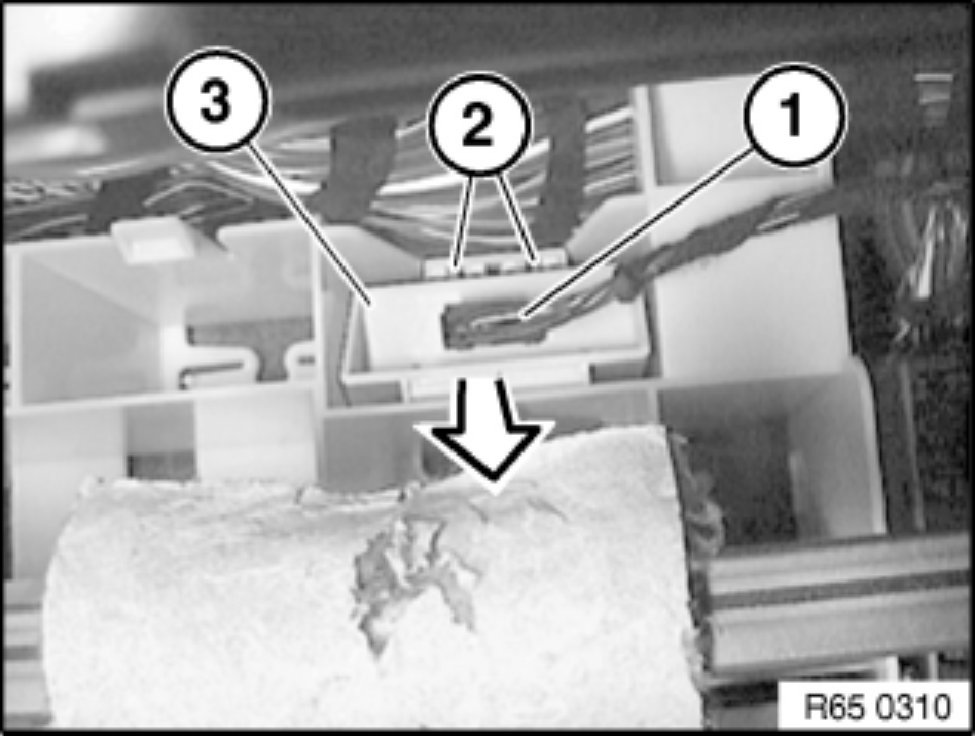

Disconnect plug connection (1).
Press together catch (2) and pull out pitch sensor (3) in direction of arrow.
