Starter Motor: Service and Repair

Removing And Installing/Replacing Starter Motor (M54)

Switch off ignition.


NOTE:
Follow instructions for disconnecting and connecting battery.
Disconnect battery negative lead from battery.
Starter motor is removed from below.

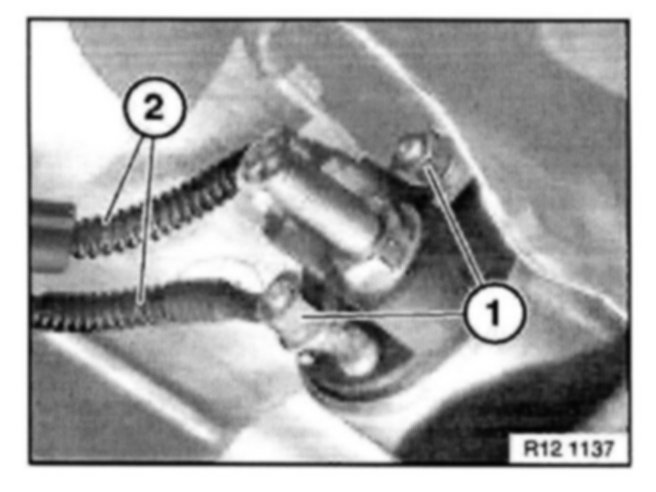

Release nut (1).

Disconnect battery positive lead (2) from starter motor.


NOTE:
For purposes of clarity, reinforcement plate is now shown.
Do not remove reinforcement plate.

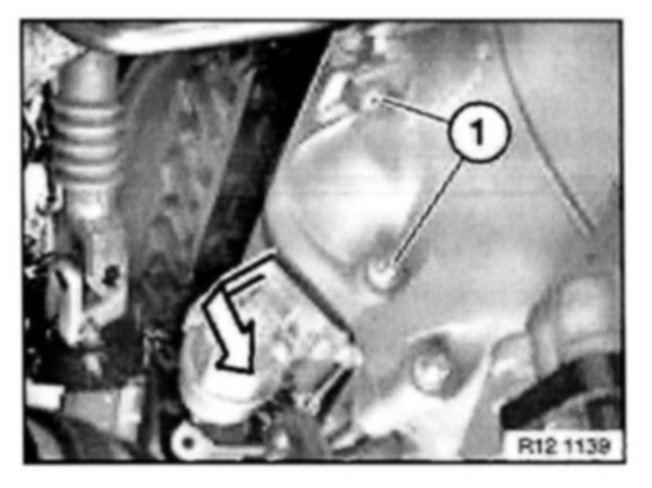

Release screws (1).
Tightening torque, Starter mount 47 Nm.
Pull starter motor out of transmission mount and turn in order to facilitate access to control leads on starter motor.

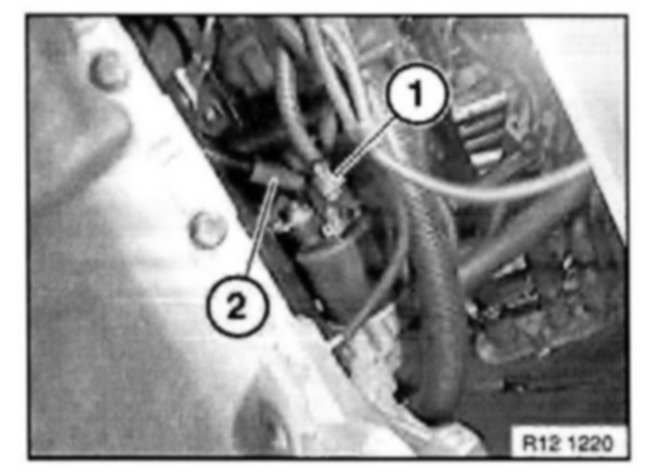

Release nuts (1).

Detach control leads (2) from starter motor.
Remove starter motor.

Installation Note: Check starter pinion and ring gear for damage, replace starter motor if necessary.
