Central Power Supply: Service and Repair

Removing And Installing/Replacing Integrated Supply Module (N62)

Necessary preliminary tasks:
- Read out fault memory of DME control unit.
- Switch off ignition
- Follow instructions for disconnecting and connecting battery
Disconnect battery
- Remove microfilter housing cover

IMPORTANT: Follow instructions for removing and installing electronic control units.

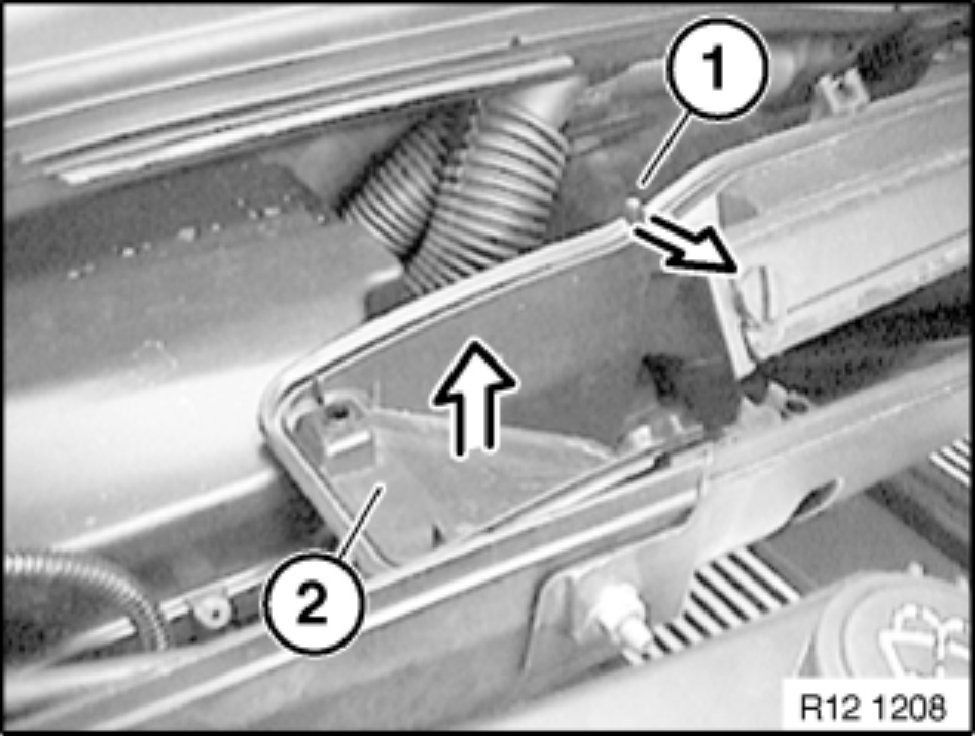

Release lock (1).
Remove air funnel (2) towards top.

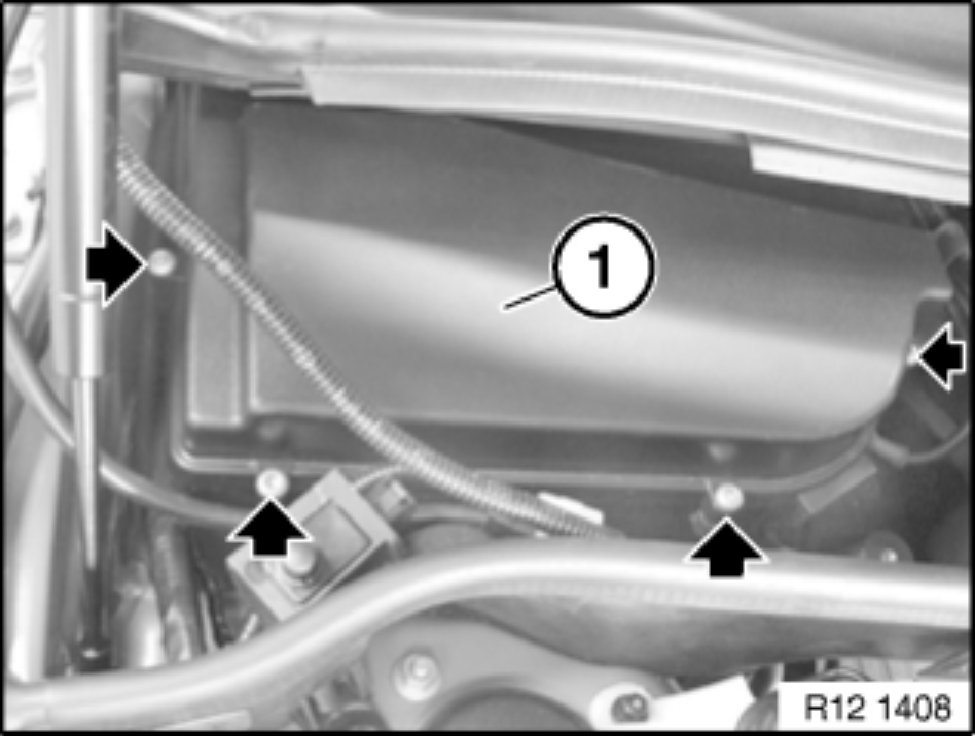

Release screws, remove cover (1).

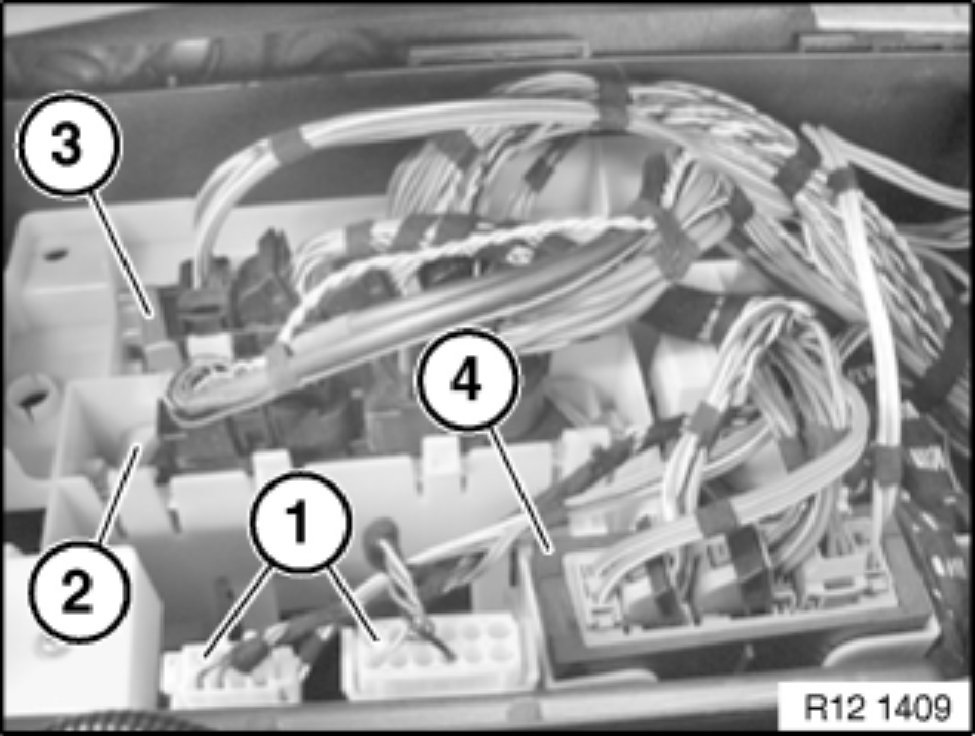

Unlock and detach plug connections on supply module (4).
Raise supply module (4), unlock plug connection on underside and detach.
Remove supply module (4).

Now clear the fault memory.
