Spark Plug: Service and Repair
Replacing All Spark Plugs (N62)Switch off ignition.
Remove ignition coils.
Unscrew

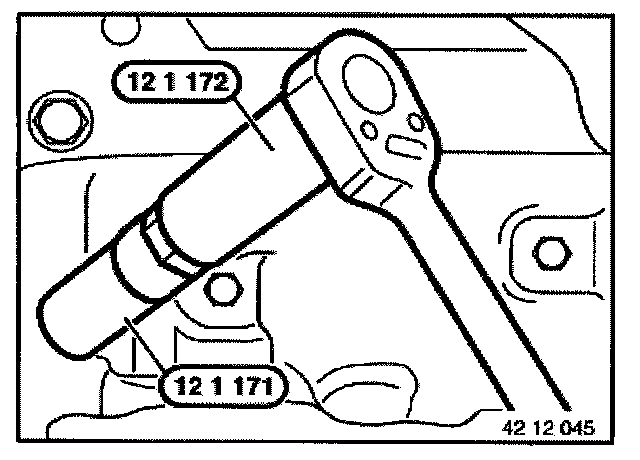

spark plugs with special tool 12 1 171.
Installation:
Tighten down
spark plugs with special tool 12 1 171 and special tool 12 1 172 (torque limiter).
Observe tightening torque without special tool 12 1 172.
Tightening torque,
Spark plugs (ungreased).
