Image Signals R G B (Video Module)




RGB Signals

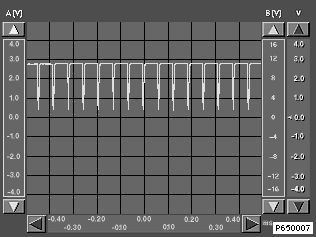

All oscilloscope images are reference values and may deviate depending on the image content!

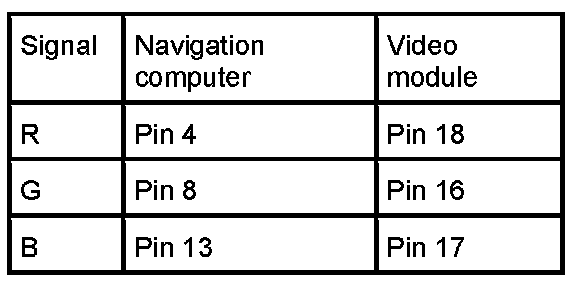

Image signals R G B (red, green, blue)

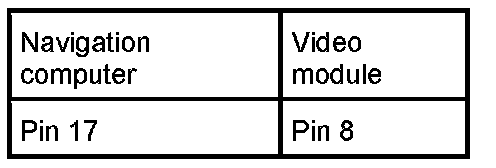

Navigation Computer - Video Module Synchronisation
