Video Module, Picture Signals, Input

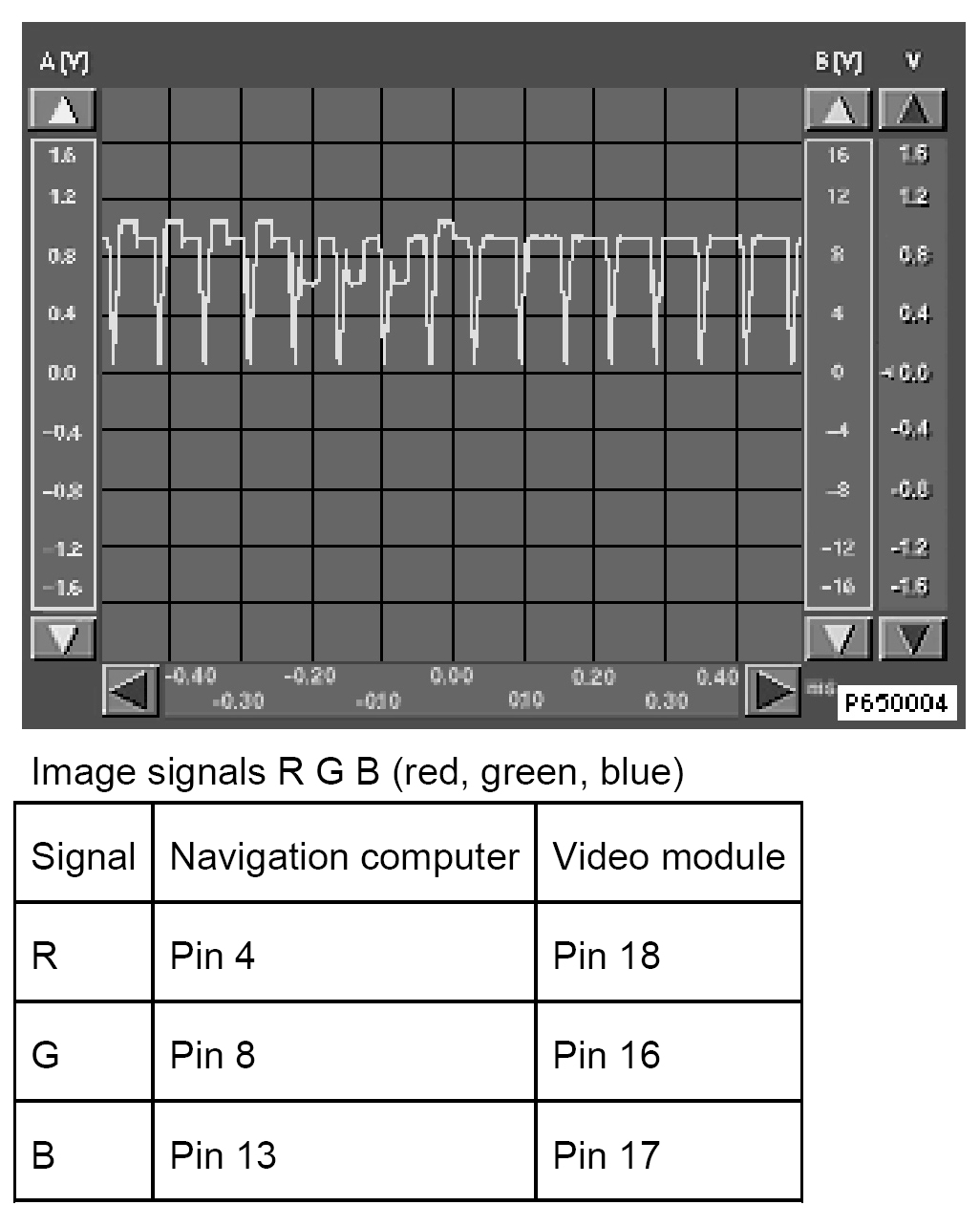

Image Signals R G B

All oscilloscope images are reference values and may deviate depending on the image content!

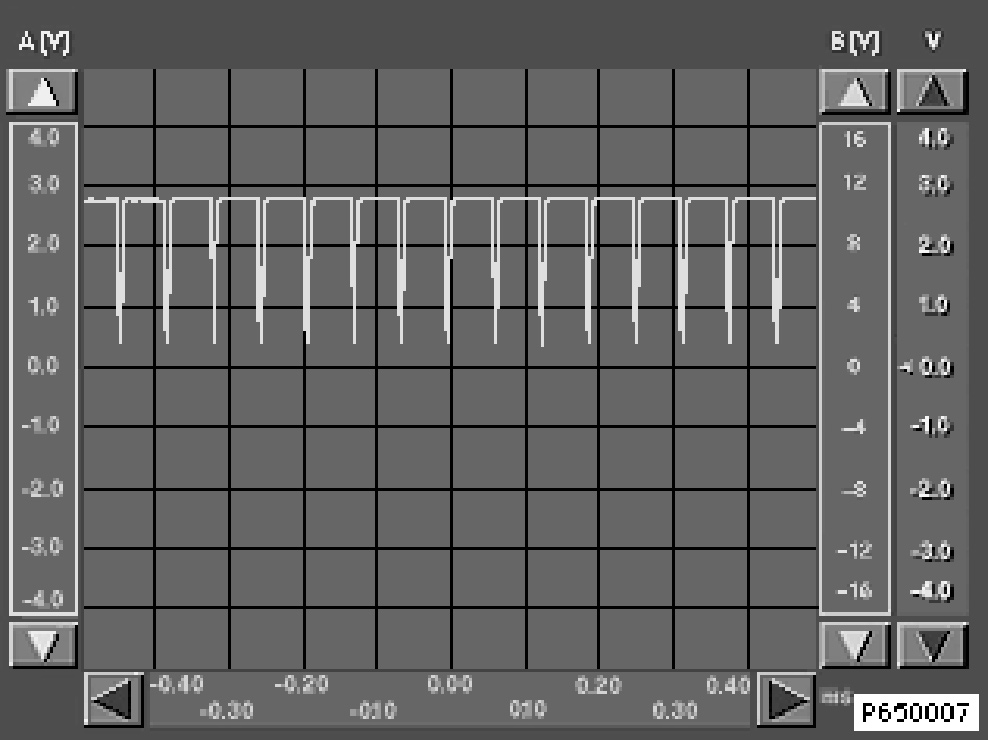

Navigation computer - video module synchronisation

Navigation computer Video module
Pin 17 Pin 8
