Video Module, Picture Signals, Output

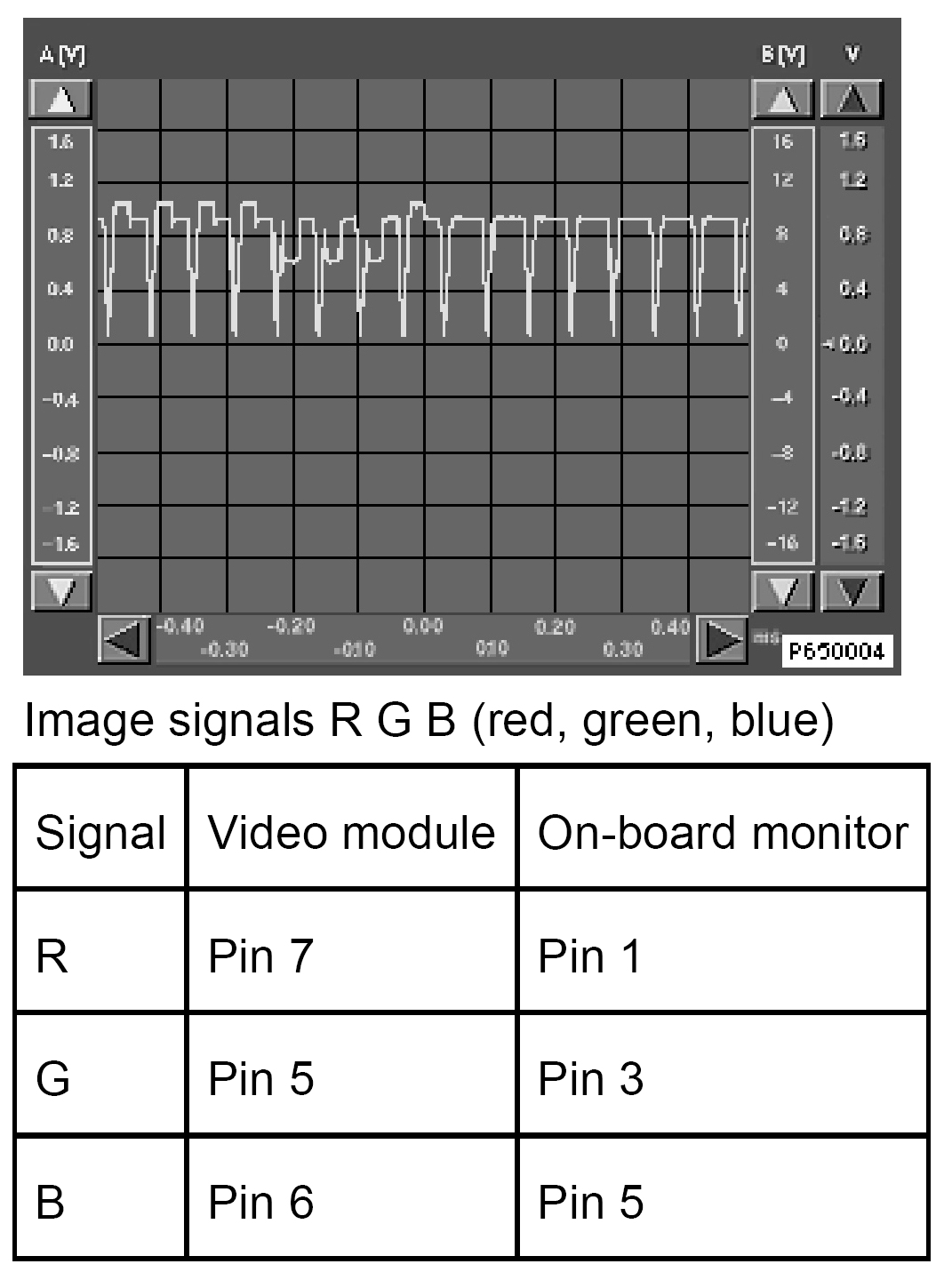

RGB Signals

All oscilloscope images are reference values and may deviate depending on the image content!

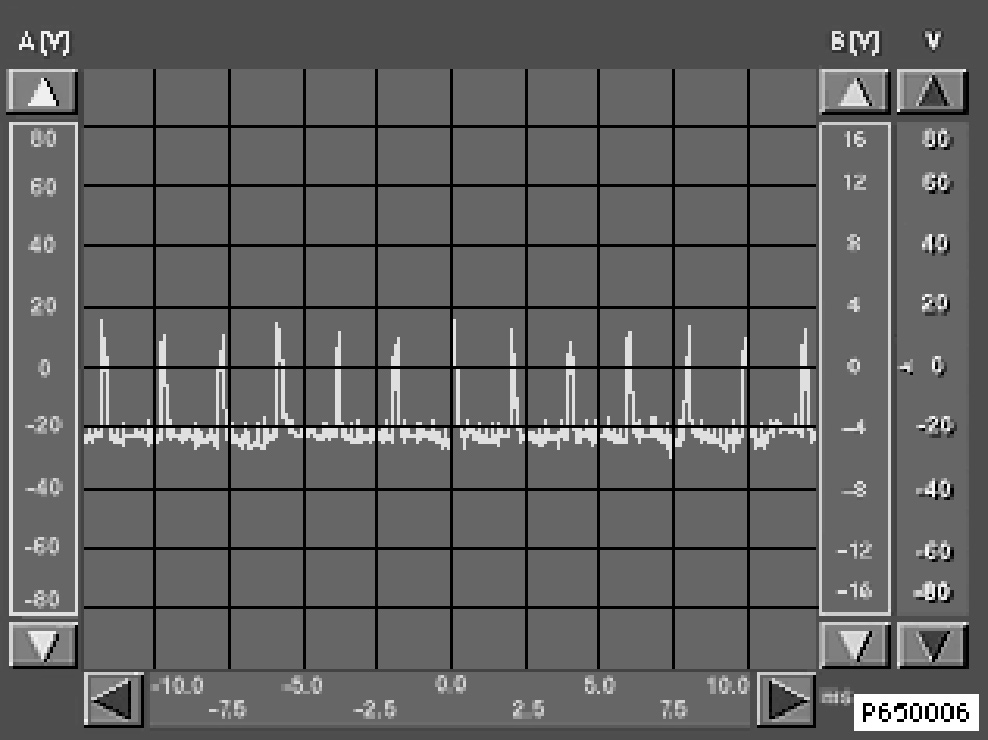

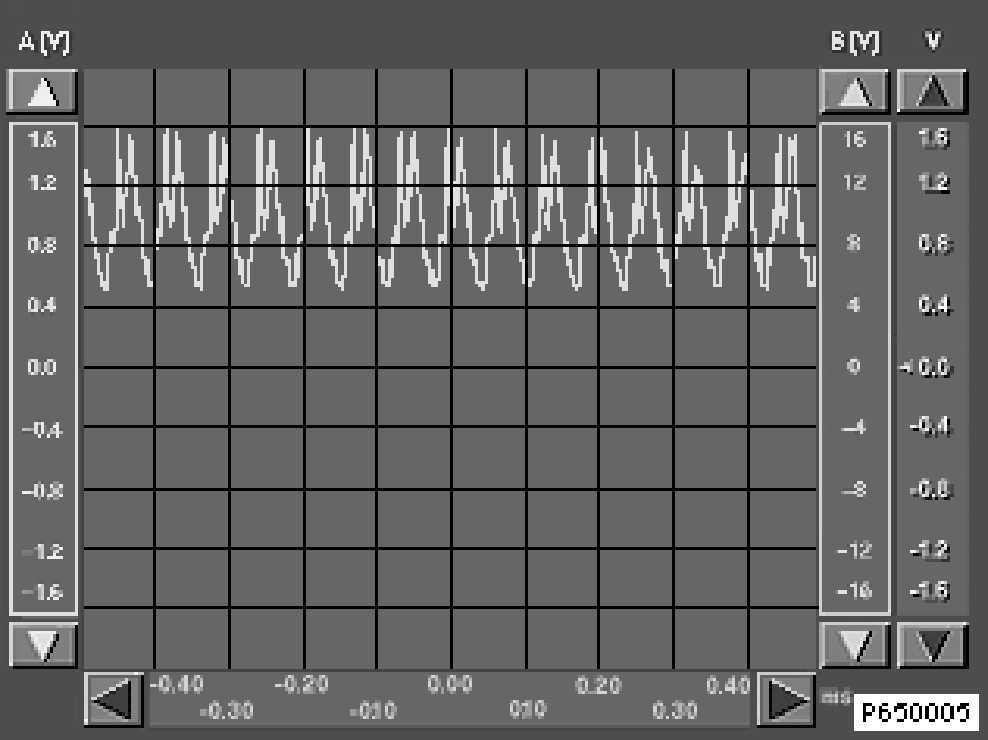

Image signals in TV mode







Ground LC display < Evaluate voltage range only ! >

Video module On-board monitor
Pin 12 Pin 7
