Access Cover: Service and Repair


Removing Engine Covers

E46 Only:
Remove microfilter housing.
This operation is described in the section "Removing and installing heater bulkhead", refer to Heating and Air Conditioning.





All Models:

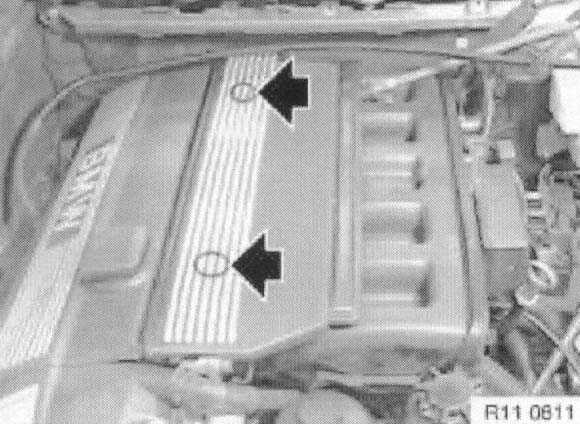

Cover Of Fuel Injectors:
Unclip screw caps and release screws.
Remove cover for fuel injectors.

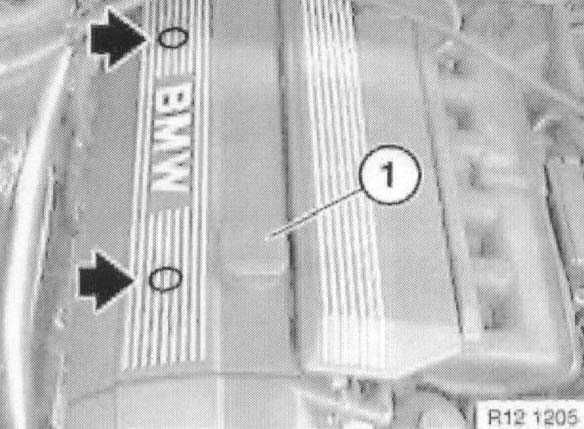

Cover Of Ignition Coil Cover:
Unclip screw caps and release screws.
Remove sealing cap (1).
Remove cover from ignition coil cover.
Screw cap (1) back into cylinder head cover.
