Front Fender: Service and Repair
41 35 000 Removing and installing/replacing side panel, front left or right
Read contents of Body, General.
For stripping and rigging operations, refer to texts on KSD CD (FR number 41 35 000).
Observe gap dimensions.
CAUTION: Do not damage adjoining body parts.
Installation information:
Seal connecting areas with sealing compound (sourcing reference: BMW Parts Service).

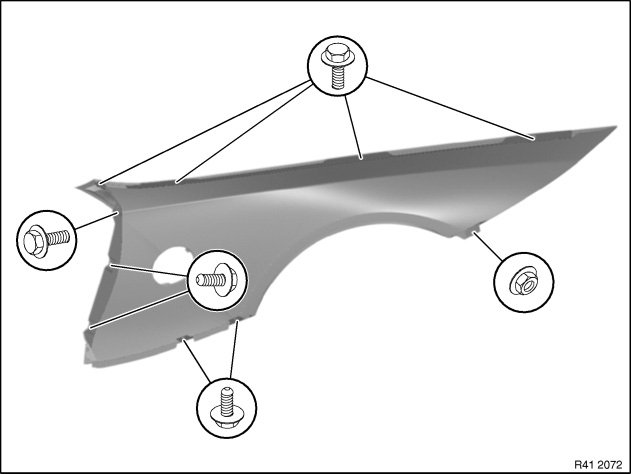

Inner view of front side panel with holders.
Loosen screws and nut.
Tightening torque 41 35 1AZ.
