51 47 490 Removing And Installing / Replacing Front Underbody Protection

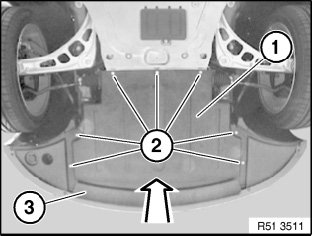

NOTE: Illustration shows one example only. There may be differences in detail in the case of other engine variants.

Release screws (2) and pull out underbody protection (1) from under bumper trim (3).

Installation:
Ensure that seals are correctly seated.
Center underbody protection (1) and tighten down screws (2).
