Cruise Control Switch: Service and Repair

Removing and Installing/ Replacing Cruise Control Switch

Necessary Preliminary Tasks:
- Remove lower section of steering column trim

NOTE:

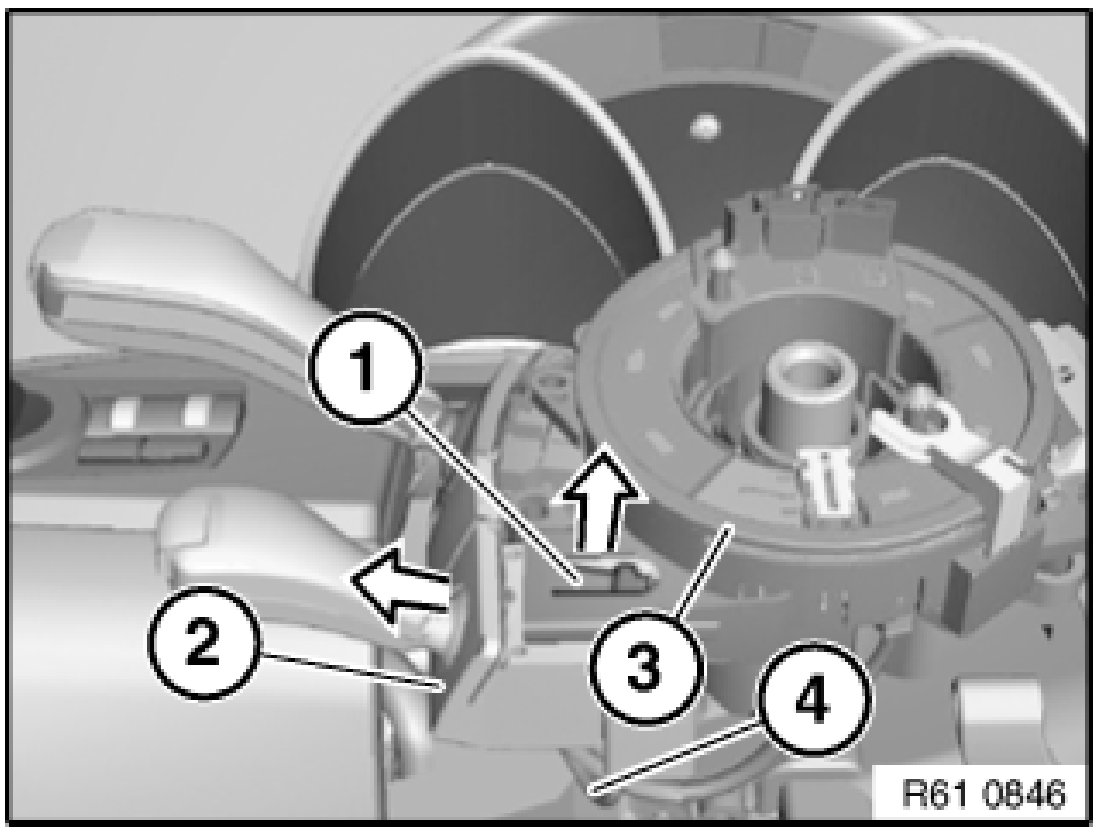

For purposes of clarity, the illustration shows the steering wheel removed.

Open lock (1) and feed cruise control switch (2) in direction of arrow out of fixture for steering column stalk (3).

Disconnect associated plug connection (4) and remove cruise control switch (2).
