Bus Systems

Bus Systems

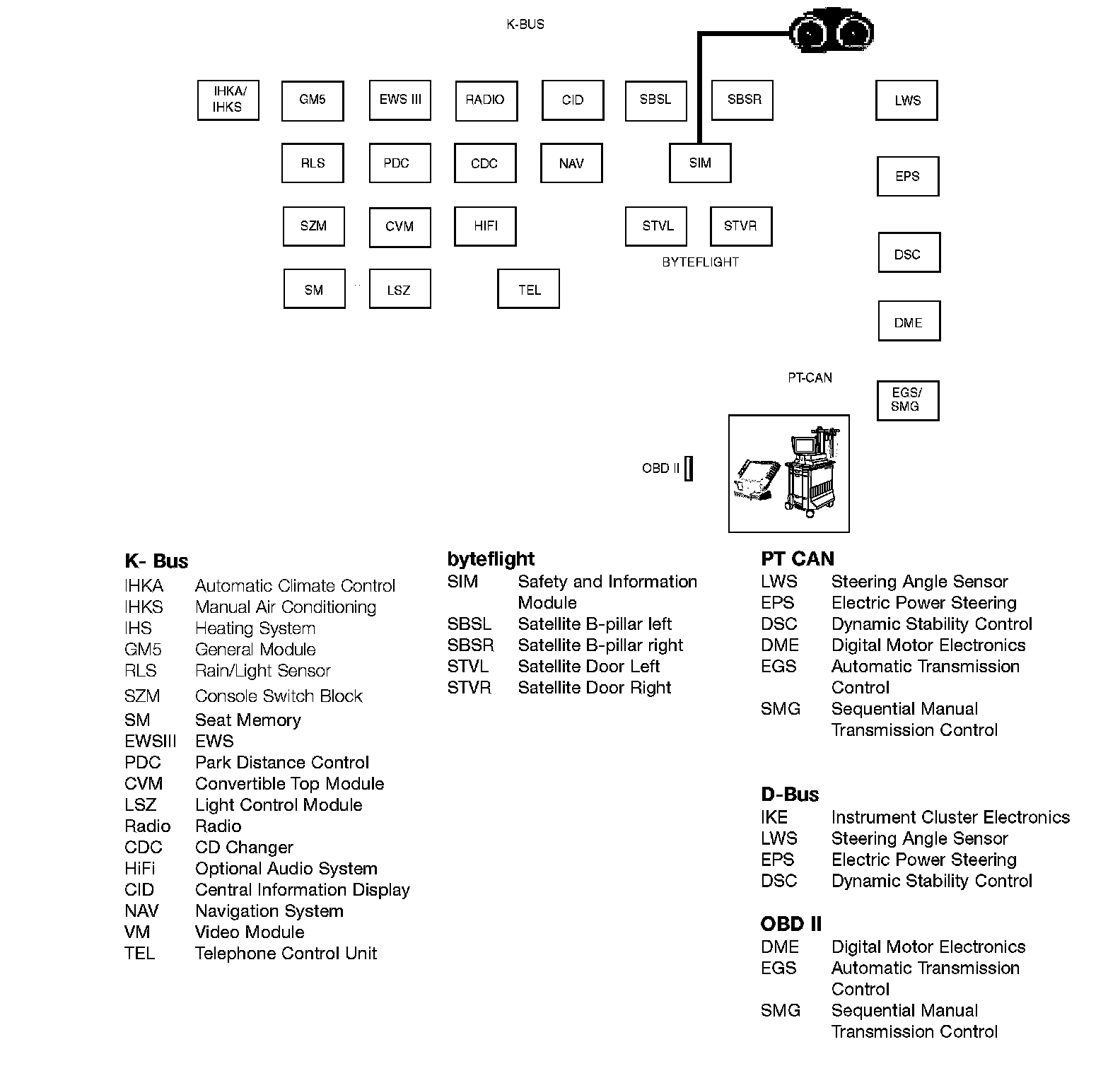

The bus system of the (E85) Z4 is based on the K-Bus, PT CAN and the D-Bus of the E46. The byte flight optical bused system is based on the E65.
