Monitored B+ Cable

Monitored B+ Cable

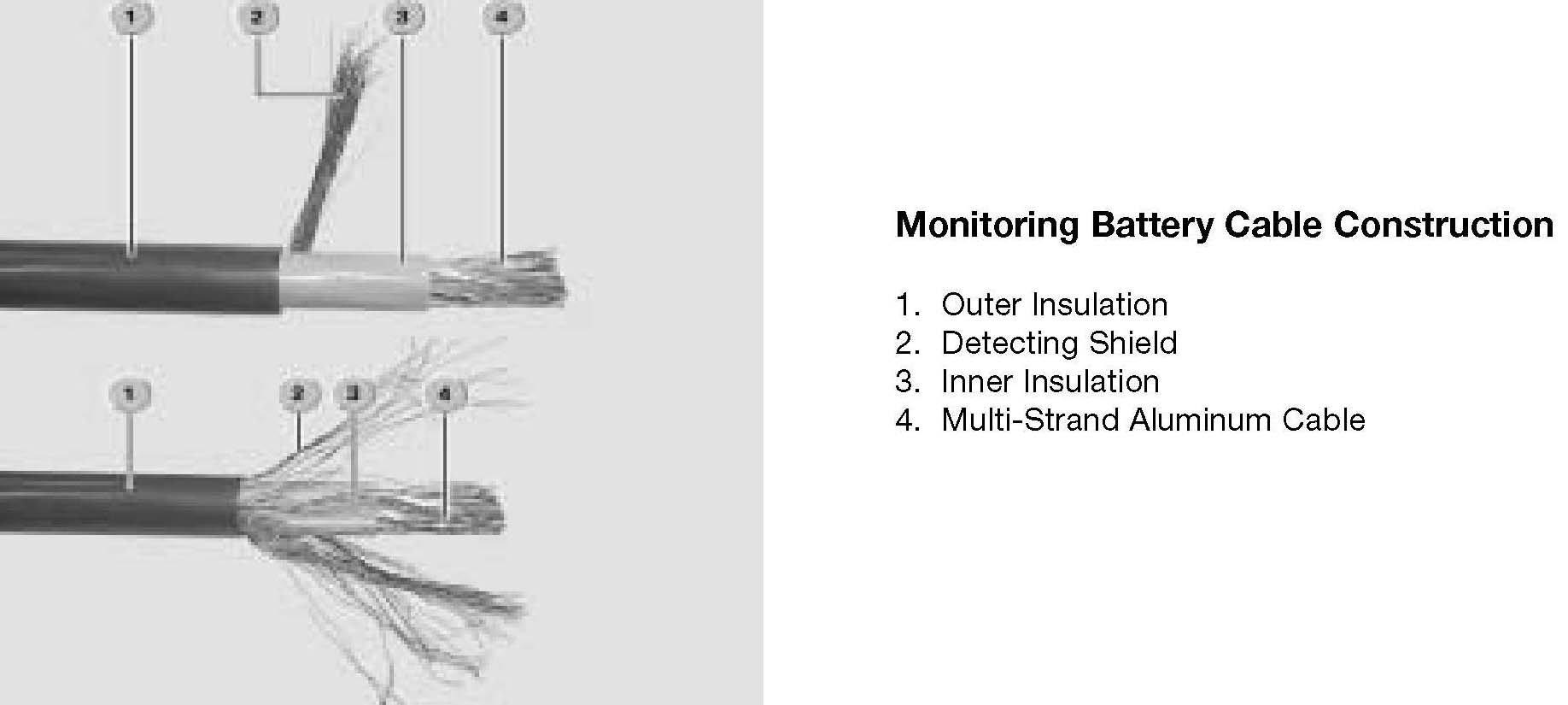

The Monitored B+ Cable is a mutli strand aluminum cable with a cross section of 80mm.The aluminum cable is sheathed with an insulating layer and surrounded by a detecting shielded cable. An outer insulating sheath covers the entire assembly.

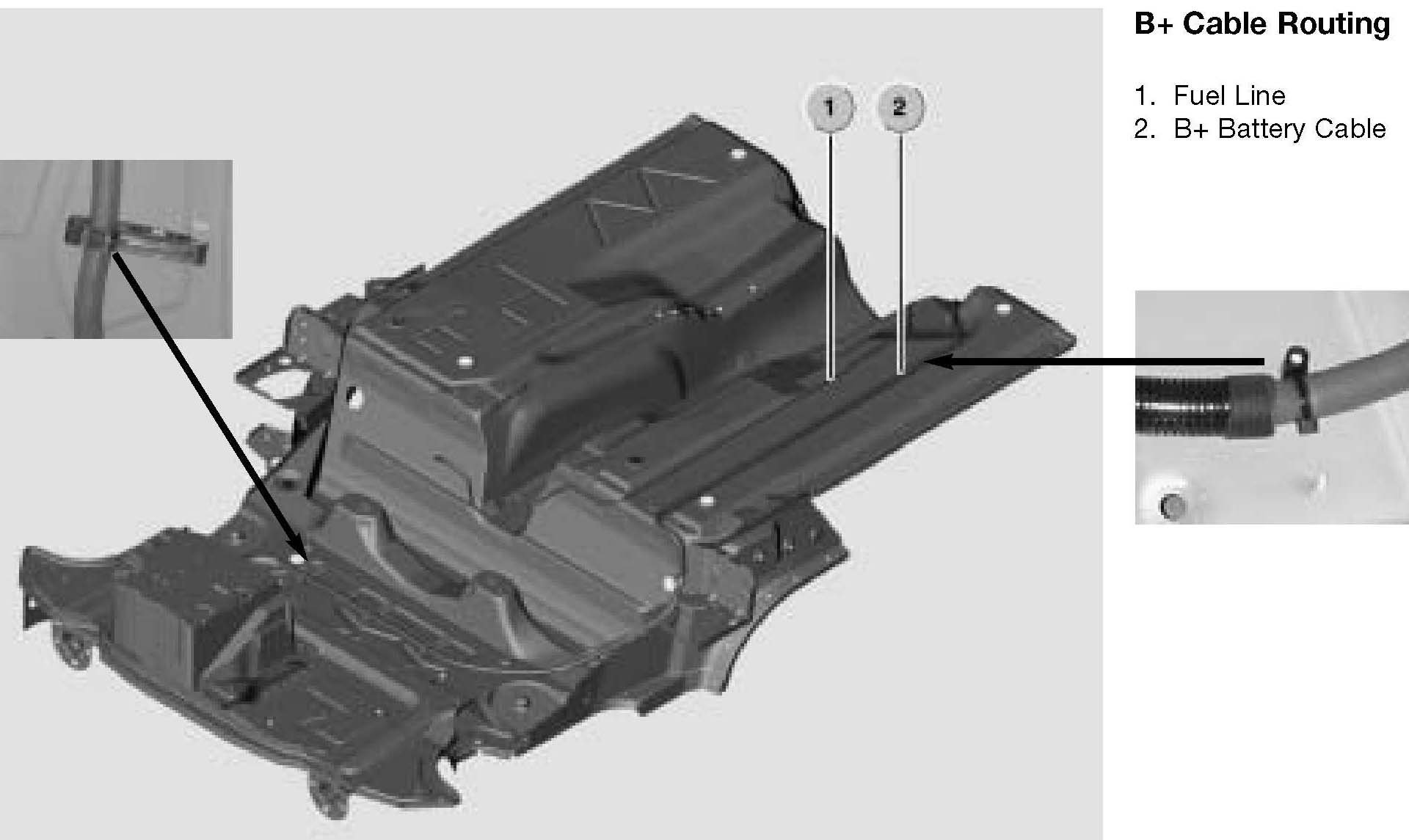

The Monitored B+ cable is routed underneath the vehicle from the battery box along the floor pan to the engine compartment jumper cable point. The B+ cable is attached to the underside of the body with two different style clips. The cable is protected with plastic shielding. (Description of cable monitoring is found in Safety Systems.)
