Neutral Detection, Position Switch

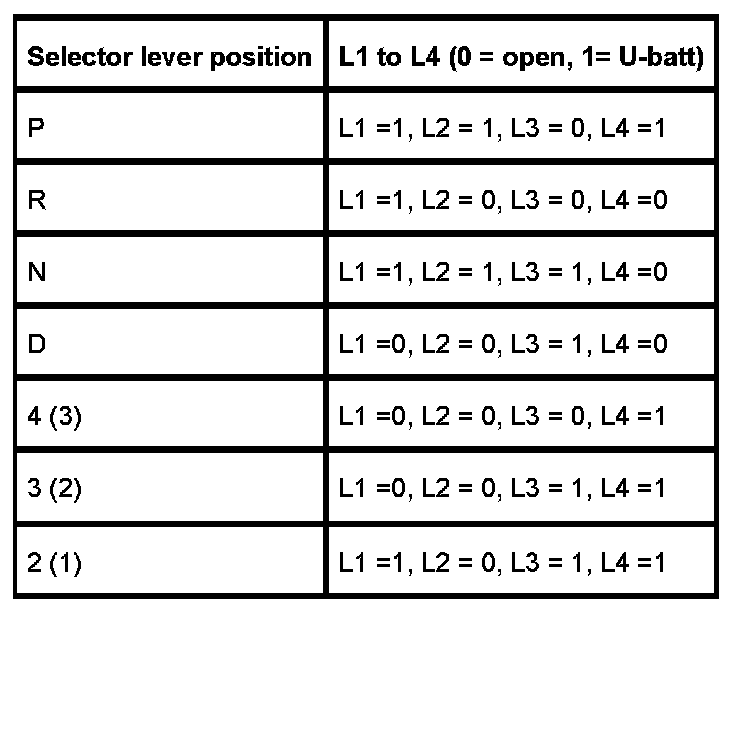

Selector Lever SwitchThe EGS control unit detects the selector lever position by way of a switch on the transmission. This switch converts the current selector lever position into a code. This selector lever code is transferred via four lines (L1-L4) to the EGS control unit.
