63 12 860 Replacing Control Unit For Left Xenon Headlight





63 12 860 Replacing control unit for left xenon headlight






Warning!
Xenon headlights: Danger to life due to high voltage! Therefore disconnect xenon headlights from voltage supply.
Work on the entire xenon lighting system (ignition unit, control unit and lamp) may only be carried out by specialist personnel.






Necessary preliminary tasks:
- Remove left headlight (xenon headlight)

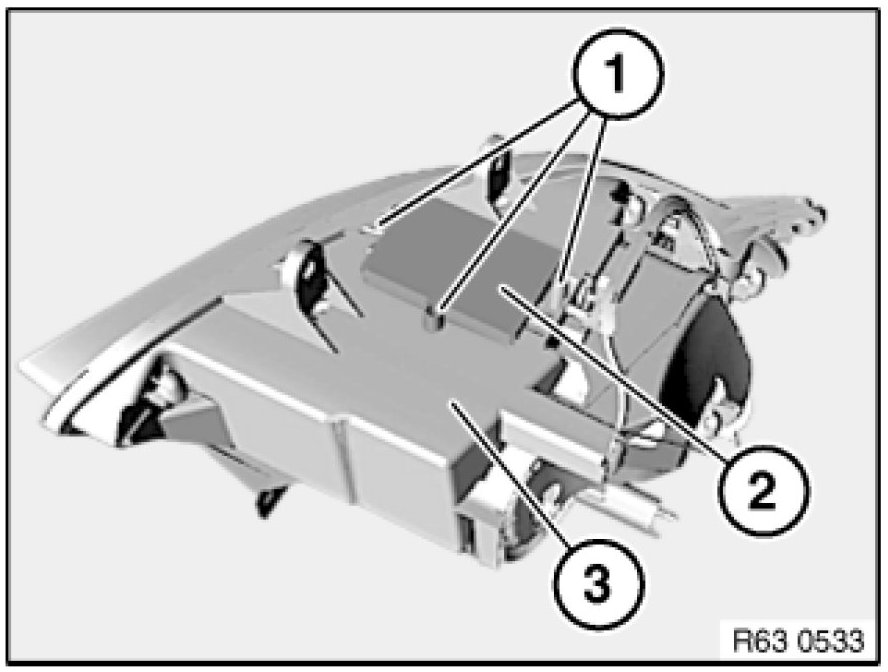

Release screws (1).
Remove control unit for xenon headlight (2) upwards from headlight (3).






Installation:

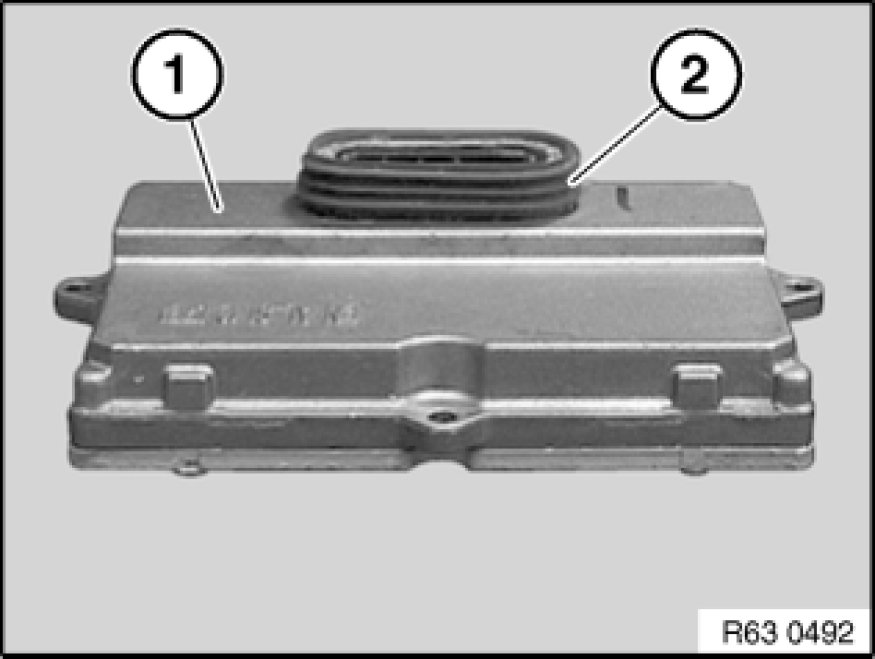

When installing control unit for xenon headlight (1),make sure sealing sleeve (2) is correctly seated.
