Air Bag Control Module: Service and Repair

Removing and Installing/ Replacing Airbag Control Unit


Warning!
Note airbag safety instructions!
Incorrect handling can activate airbag and cause injury.

NOTE:
Follow instructions for handling optical fibers.

Necessary Preliminary Tasks:
- Disconnect battery negative lead and cover. Service and Repair
- Remove rear storage compartment. Service and Repair

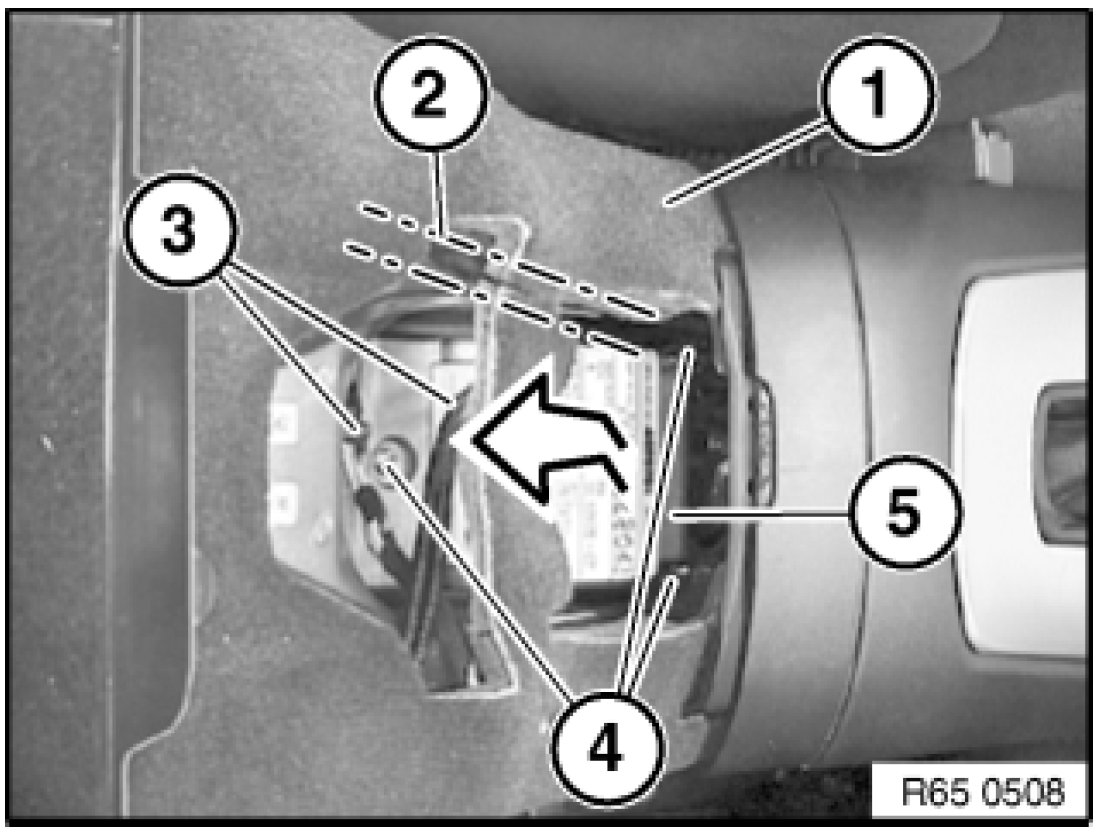

Cut through carpet (1) in area (2) and fold to one side.

Unlock plug connections (3) and disconnect.

Unscrew nuts (4).

Installation:

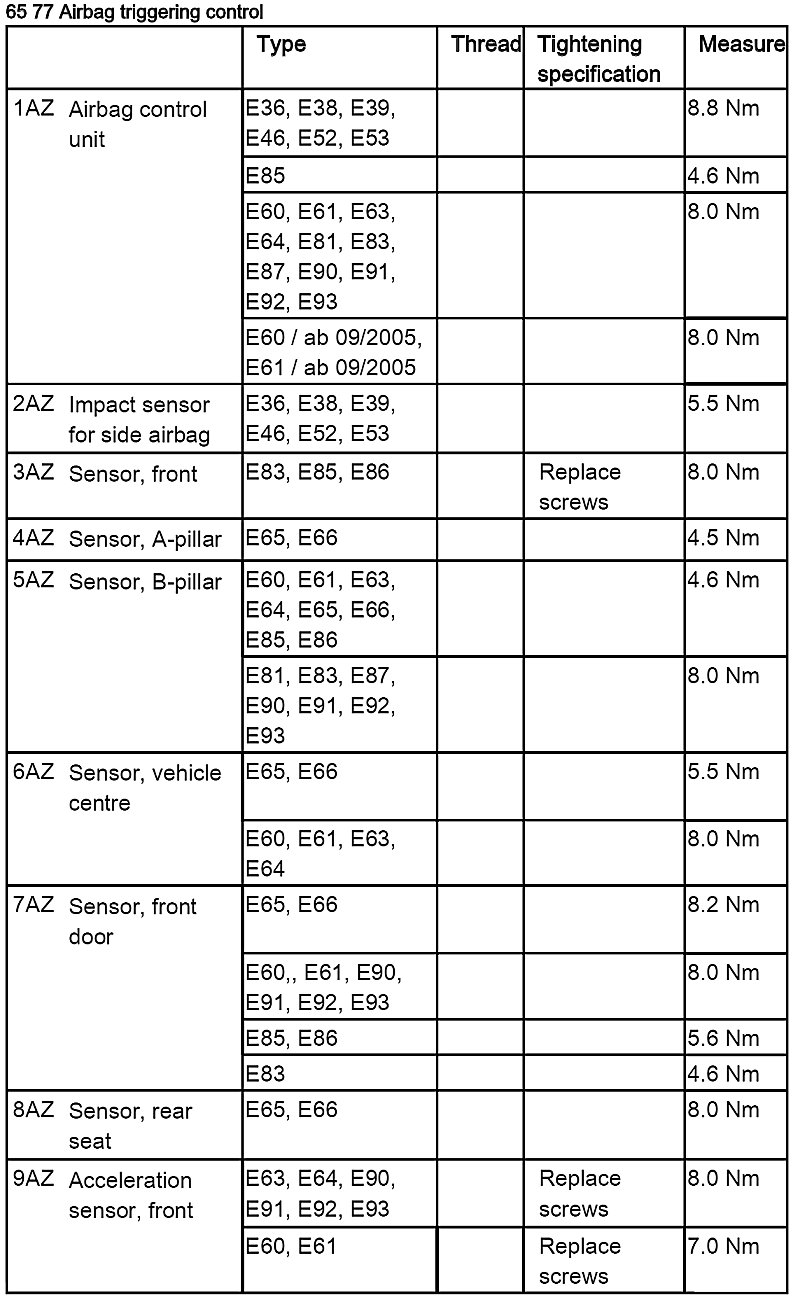

- Tightening Torque, 65 77 1AZ.

Feed out airbag control unit (5) in direction of arrow and remove.




Replacement:

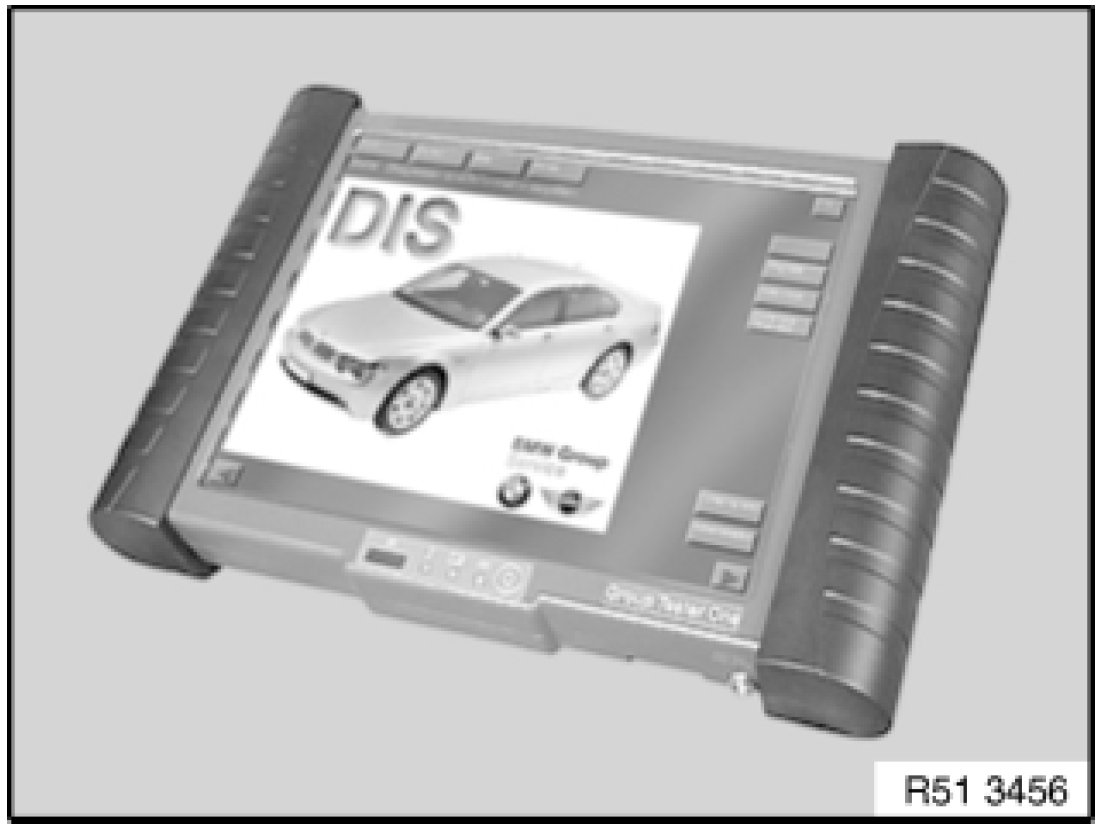

Carry out coding/ Programming.
Observe following IDC specifications:
- Programming
- Coding
- If necessary, car and key memory
- CD "CIP"
