Seat Occupant Classification Module - Air Bag: Service and Repair

Removing and Installing/ Replacing Control Electronics For Passenger Seat Occupancy Detector


Necessary Preliminary Tasks:
- Move seat into most upward position
- Unlock and remove first aid kit under passenger seat





NOTE:
Seat removed for purposes of clarity.

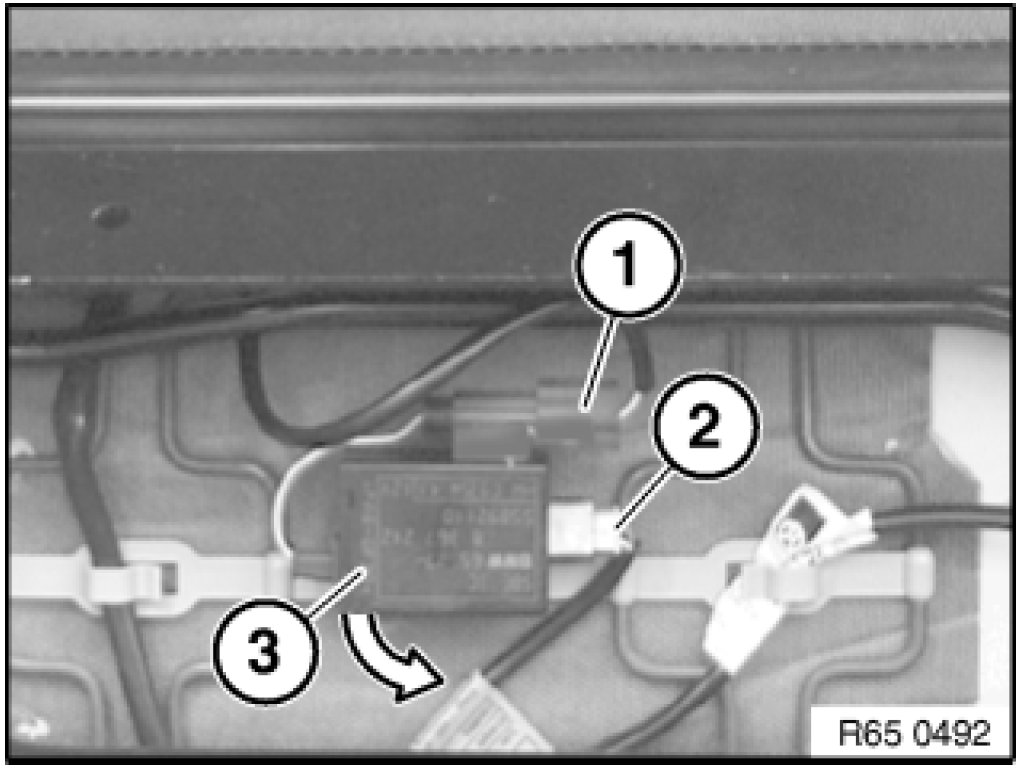

Turn control electronics for passenger seat occupancy detector (3) approx. 45° in direction of arrow and unclip from seat frame.

Unlock and disconnect plug connections (1) and (2), remove control electronics for passenger seat occupancy detector (3).
