Power Window Switch: Service and Repair






61 31 114
Replacing Rocker Switch For Side Window Operation (Driver's Side)

Operation is described in:
"Replacing switch for wing mirror".
Service and Repair

61 31 115
Replacing Rocker Switch For Side Window Operation (Passenger Side)

Special tools required:
00 9 317

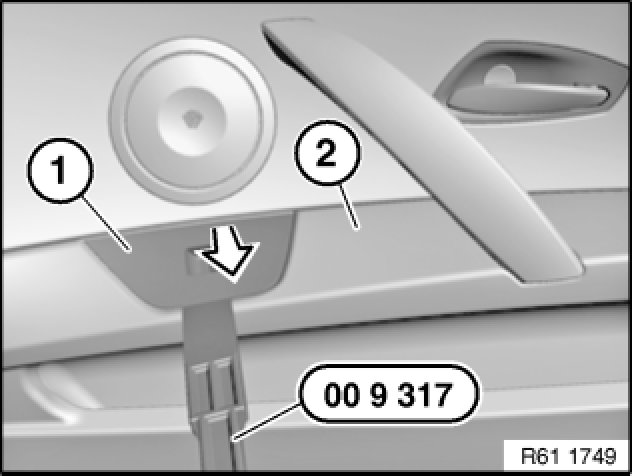

Engage special tool 00 9 317 as illustrated and lever out rocker switch (1).
Feed rocker switch (1) out of door trim panel (2).
Disconnect associated plug connection and remove rocker switch (1).
