Locations of Control Units In Engine Compartment
Locations of control units in engine compartment The control units of the following important systems are fitted in the engine compartment of the Z4:
^

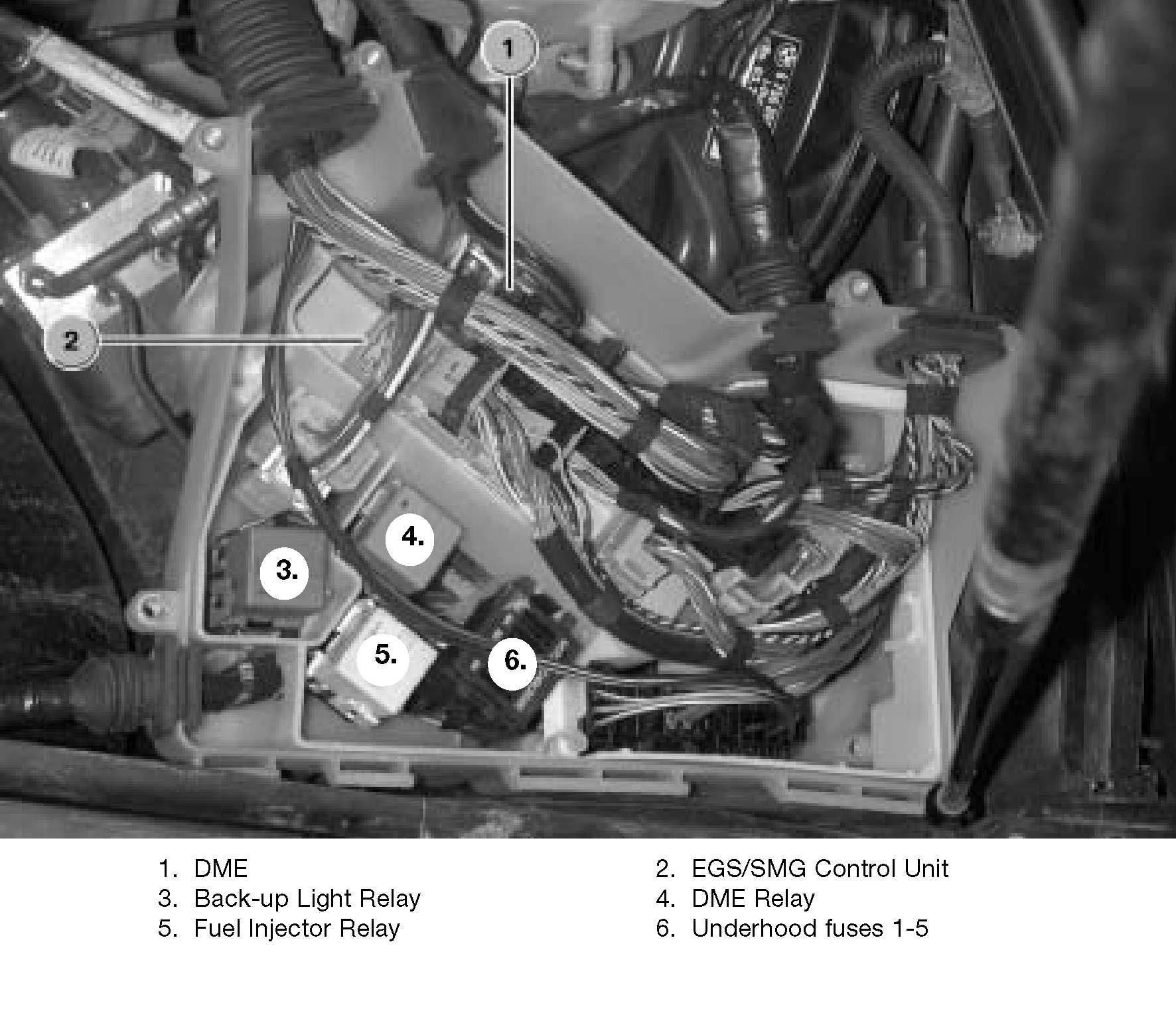

DME (digital engine electronics)
^
EGS (electronic gearbox control)
^
SMG (sequential/mechanical gearbox control)
^

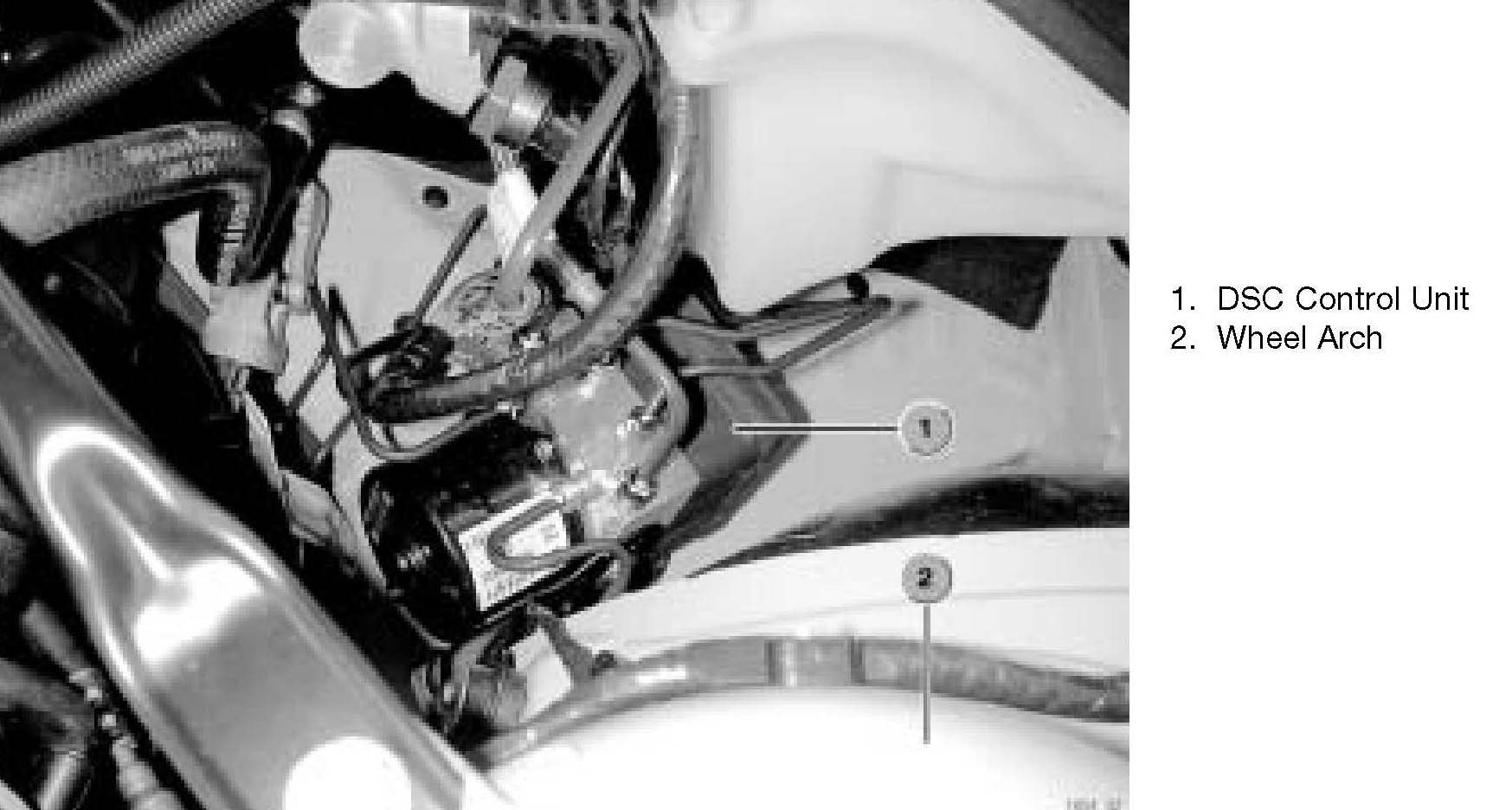

DSC (Dynamic Stability Control)
