Emergency Actuation, Convertible Top Catch

54 34 ... Emergency Actuation, Convertible Top Catch

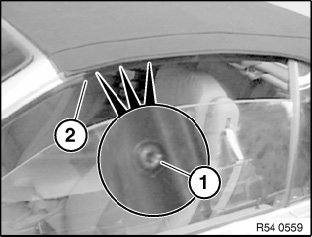

Release side sections on left and right of cowl seal.
1. Screws for seal
2. Hole for emergency actuation

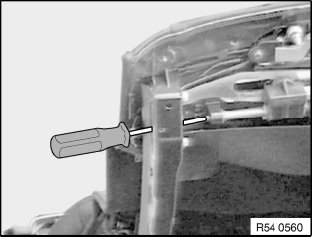

Insert an appropriate wrench (TORX) into hole in convertible lock frame and actuate emergency actuation screw connection.

NOTE: Shown here without trim and open.
