Replacing Actuating Mechanism Backrest (Through-Loading System)

Removing And Installing/Replacing Actuating Mechanism For Left Rear Seat Backrest (Through-Loading System)

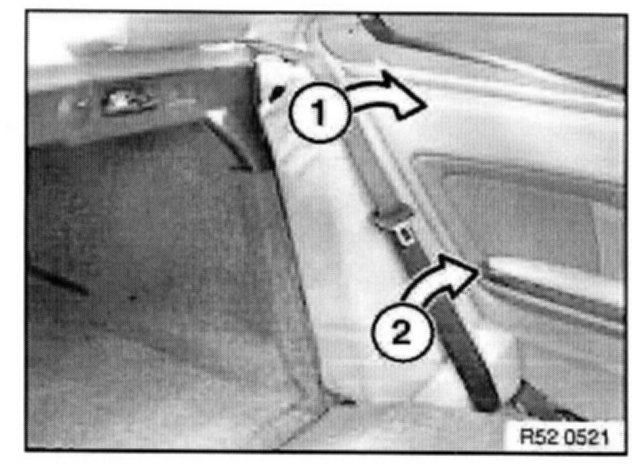

Remove and install lock for rear seat backrest (through- loading system).

For saloon/sedan only:







Loosen screws (1).
Unlock catch (2) and at same time unclip mechanism (3) towards bottom.
Unclip Bowden cable from mounting (4).







Installation:
Catches (1) of mechanism (3) must not be damaged.

Bowden cable (2) must be engaged correctly in mechanism (3).

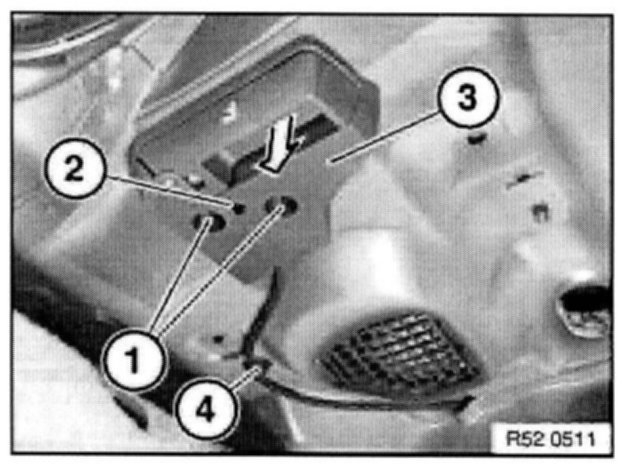

For Coupe only:







Loosen screws (1).
Unlock catch (2) to middle of car and at same time unclip mechanism (3) towards bottom.
Unclip Bowden cable from mounting (4).

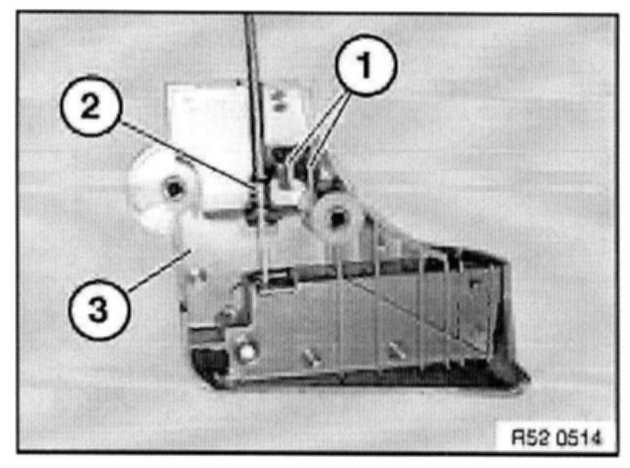

Installation:

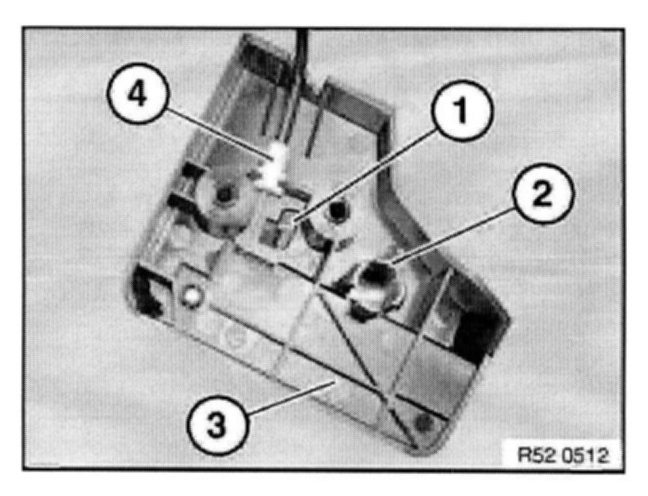

Catches (1) and (2) of mechanism (3) must not be damaged.

Bowden cable (4) must be engaged correctly in mechanism (3).
