Replacing Left or Right Front Seat (Normal/Manual)

Removing And Installing Left Or Right Front Seat (Normal/Manual)

If necessary, remove front head restraint.
Move front seat forwards/upwards as far as possible.


WARNING:
Observe safety regulations for handling airbag modules and pyrotechnical seat belt tensioners.
Improper handling can lead to triggering of the pyrotechnical seat belt tensioner or side airbag, resulting in injuries.
Switch off ignition.







Saloon/sedan only:

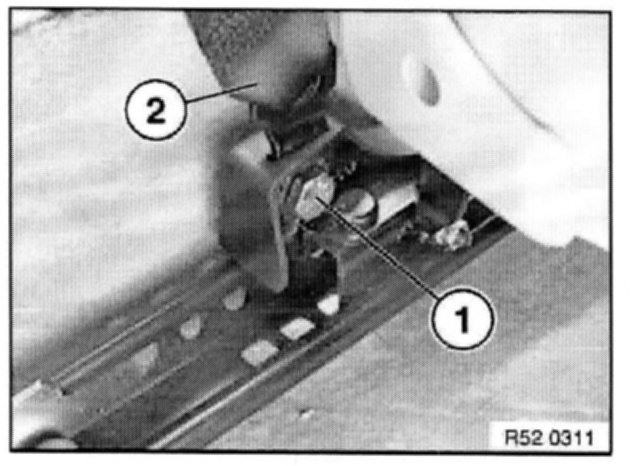

Release seatbelt screw (1) and feed out seatbelt strap (2).









All:

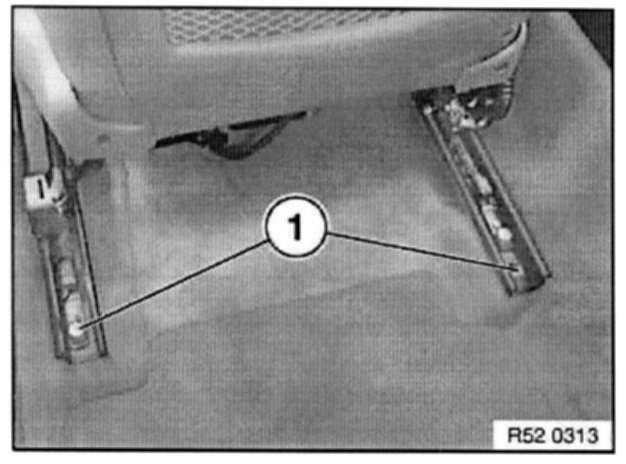

Release screws (1) at rear.

Installation:
Replace screws.


Move front seat back as far as possible.







Unclip cover at front.

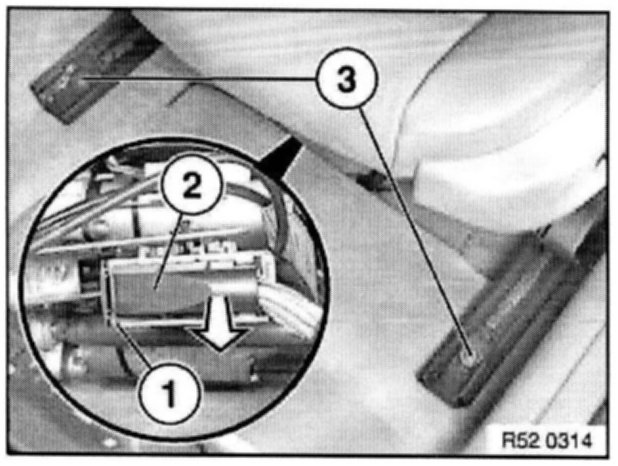

Release nuts (3) at front.

Installation Note: Replace nuts.

Move front seat down and seat runners forward so that they are flush.
Unlock lock (1) and disconnect plug connection (2).


CAUTION: Cover door sill with protective covers (risk of damage).


Lift out front seat.

Installation:
Floor carpet must not enter area between seat rails and floor panel beside screw points (grating noises).
