Replacing Accelerator Pedal Pad

Warning:
Once an accelerator pedal has been removed, always replace it with a new pedal!
Retaining clips on old part may be damaged: foot pedal can then slide out of steel plate.
This means there is a risk of accident!





Press down carpet.

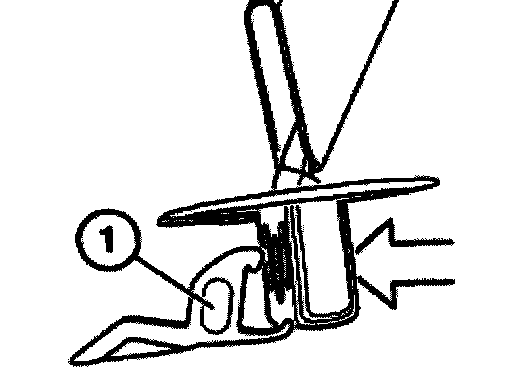

Press locking tab (1) forwards.
Installation: Fold locking tab (1) upwards until it engages.

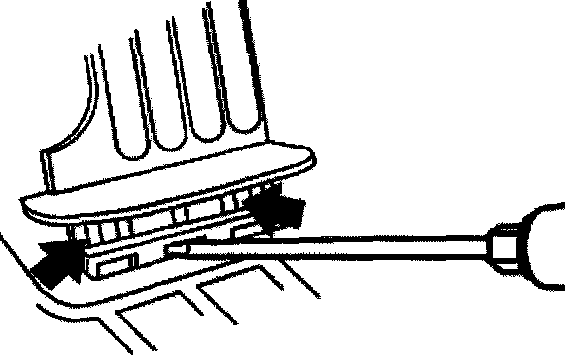

Bend retaining clips forwards and lever out foot pedal upwards.

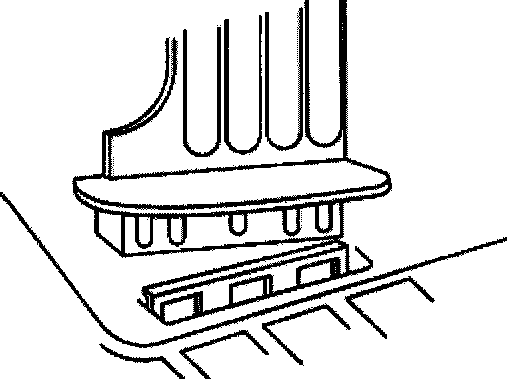

Installation: Insert foot pedal in floor with pocket on steel plate.
Retaining clips must snap into place.
Check without fail that retaining clips have snapped into place!





Turn accelerator pedal until linkage lug of pedal engages in opening and remove pedal.
Installation: Apply a light coat of grease to sliding surface of accelerator pedal.
