Removing and Installing/Replacing ACC Sensor (Build Date From 03/05)

66 31 006 - Removing and installing/replacing ACC sensor (build date from 03/05)





Special tools required:
- 00 9 317 00 9 317 Trim Panel Wedge





Necessary preliminary tasks:
- Remove trim grille for bumper trim sideways.





Important!

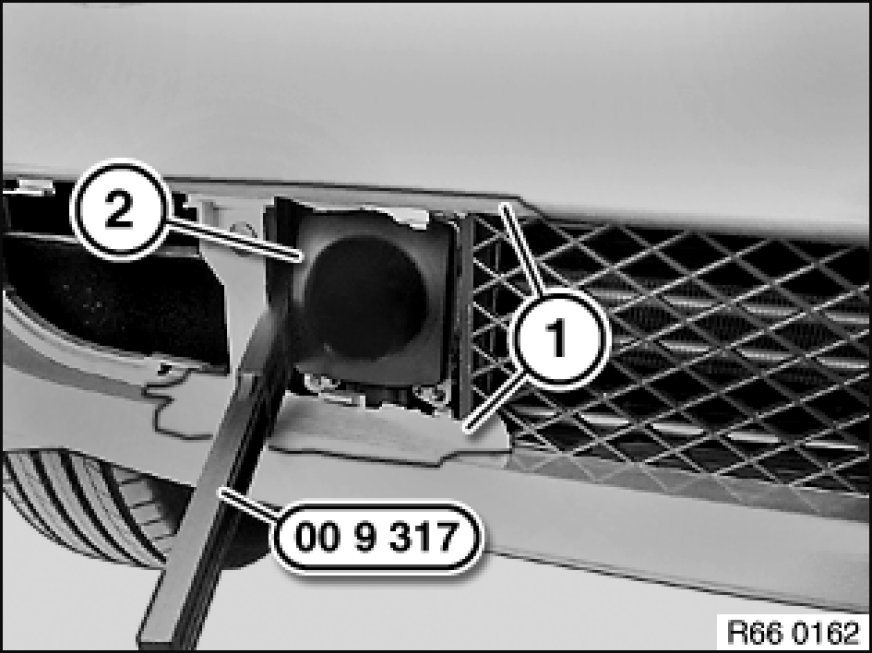

Secure ACC sensor (2) against falling out.
Cover bumper in working area (1) with adhesive tape.

Using special tool 00 9 317 00 9 317 Trim Panel Wedge, unclip ACC sensor (2) from holders on both sides.

Installation:
ACC sensor must be felt and heard to snap into place.





Important!

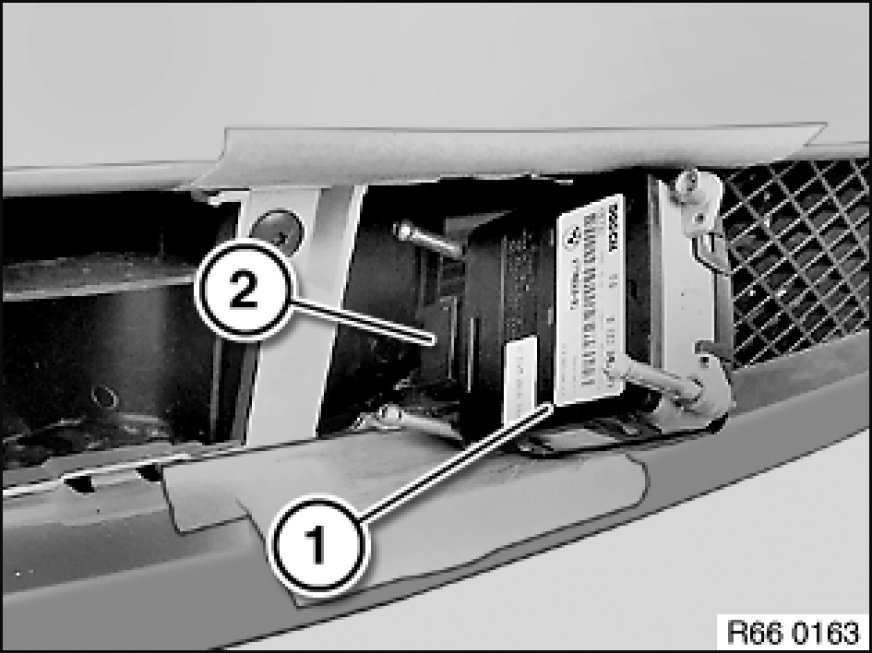

Secure ACC sensor (1) against falling out.

Disconnect plug connection (2) and remove sensor (1).





After installation:
-
- - Adjusting ACC sensor Adjustments
- Carry out programming/coding Programming and Relearning





Replacement:
Carry out rough adjustment of ACC sensor (1) at adjusting screws (2).
- Measurement A [mm]: 42.5 to 43.5
