Power Seat Control Module: Service and Repair

61 35 080 - Removing and installing (replacing) control unit for left or right seat adjustment (front seat)





Important!
Read and comply with notes on protection against electrostatic discharge (ESD protection) 61 35 ... Notes on ESD Protection (Electro Static Discharge).





Note:
To facilitate installation/removal of control unit, move seat upwards fully.

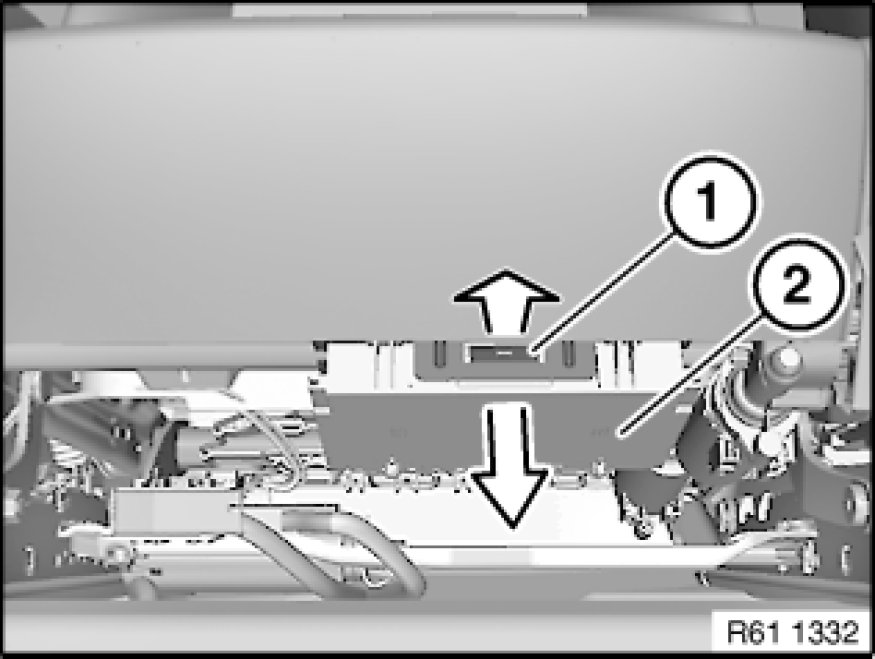

Unlock metal lug (1) towards front and remove control unit for seat adjustment (2) towards bottom.
Unlock and disconnect all associated plug connections.






Installation Note:

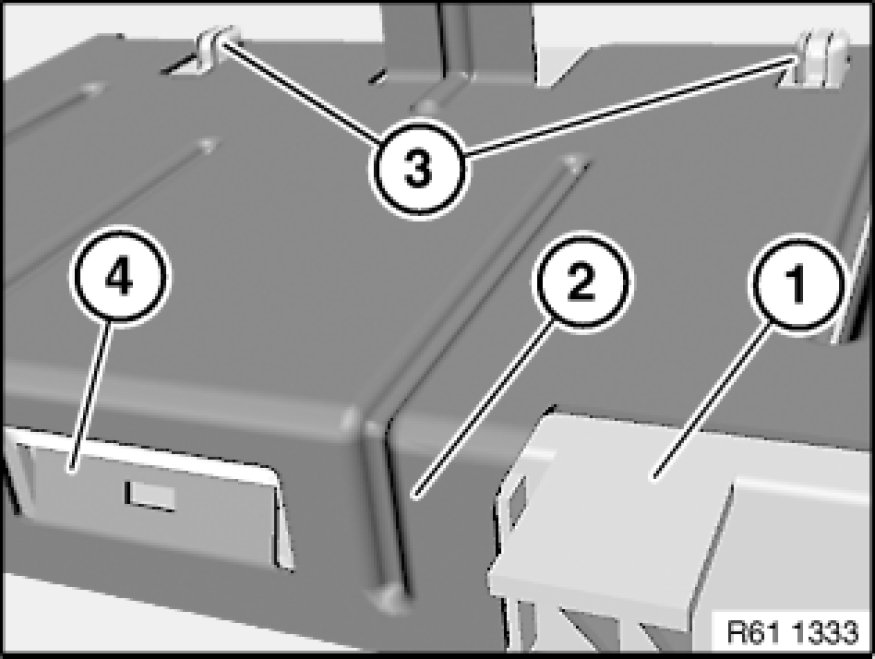

Make sure control unit for seat adjustment (1) is correctly seated in mounting (2).
Guides (3) and metal lug (4) must not be damaged.





Replacement:
Carry out programming/coding Programming and Relearning.
