Replacing Screws on ACC Sensor Unit

66 31 ... - Replacing screws on ACC sensor unit





Necessary preliminary tasks:
- Remove ACC sensor Removing and Installing/Replacing ACC Sensor





Important!
Visually inspect sensor housing for damage/leaks.
Replace ACC sensor if sensor housing is damaged.

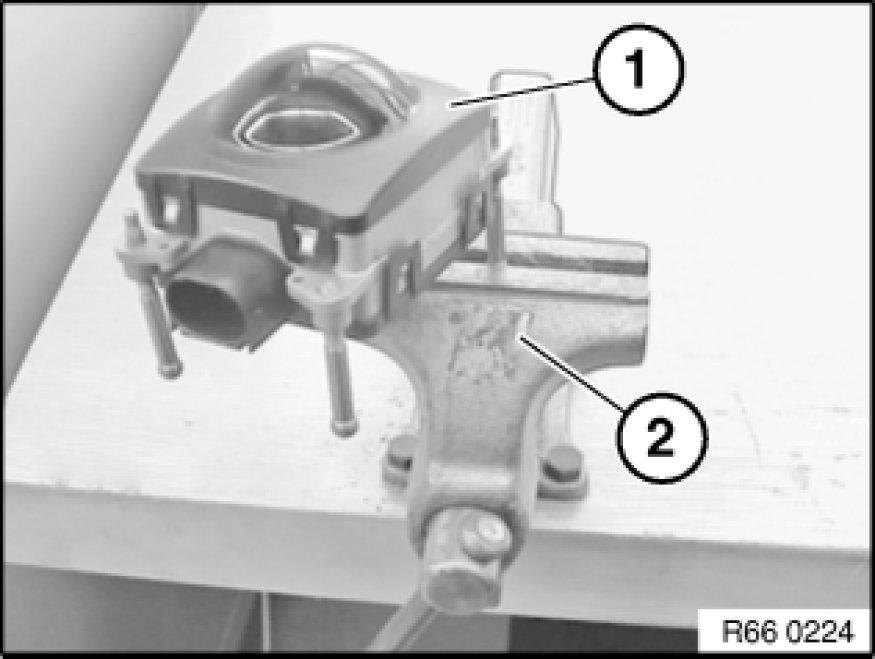

Grip sensor housing (1) by screw in a vice (2).
Release screw by turning sensor housing (2).

Important!
After releasing screws, check sensor housing (1) again for damage.
Replace ACC sensor if sensor housing (1) is damaged.





Note:
For purposes of clarity, graphic show ACC sensor holder removed.

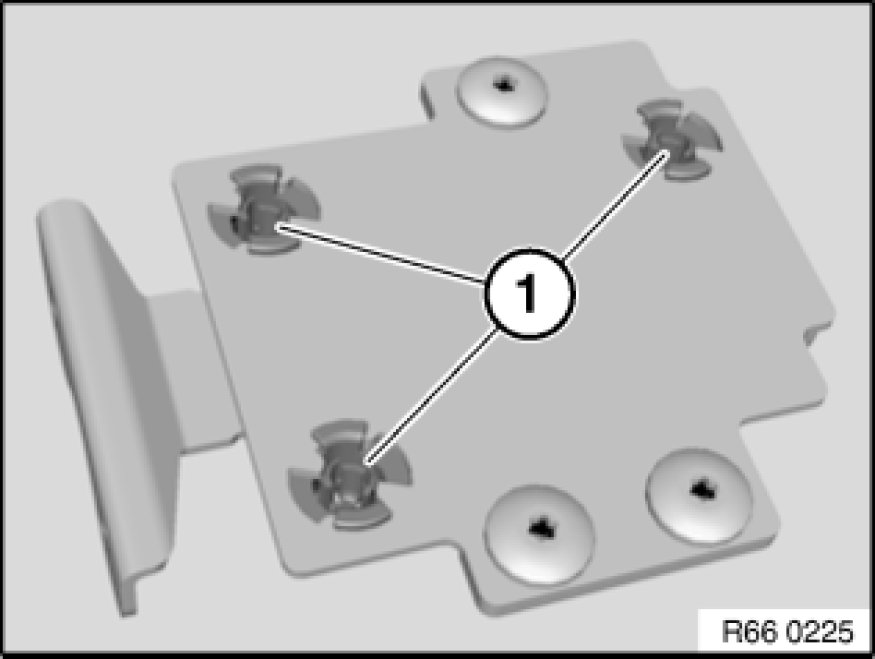

Replace plastic nuts (1).





Carry out rough adjustment of ACC sensor (1) at adjusting screws (2).
- Measurement A [mm]: 42.5 to 43.5





After installation:
-
- - Adjust ACC sensor Adjusting ACC Sensor
