66 20 565 Removing and Installing/Replacing Front Signal Sensor (Park Distance Control)
66 20 565 - Removing and installing/replacing front signal sensor (Park Distance Control)
Necessary preliminary tasks:
- Remove trim panel for pedal assembly 51 45 185 Removing and Installing/Replacing Panel For Pedals.

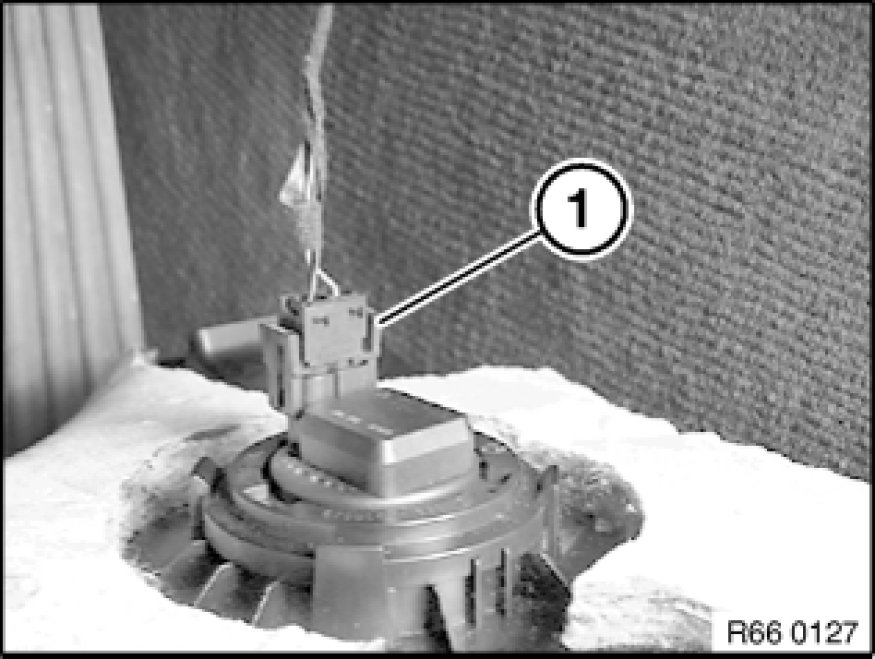

Disconnect plug connection (1).
Unclip signal sensor on both sides from fixture (1).
Installation:
Signal sensor (2) must snap audibly into retaining tabs.
