Transmission Speed Sensor: Service and Repair

24 35 700 Removing And Installing/Replacing Input And Output Speed Sensor (GA6L45R)







IMPORTANT:
After completion of work, check transmission fluid level.
Use only approved transmission oil.
Failure to comply with this instruction will result in serious damage to the transmission.







Necessary preliminary tasks:
- Remove mechatronics

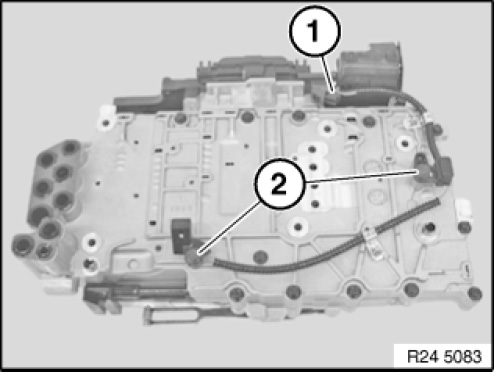

Unlock and disconnect plug (1).
Release screws (2).
Detach input and output speed sensor from mechatronics.

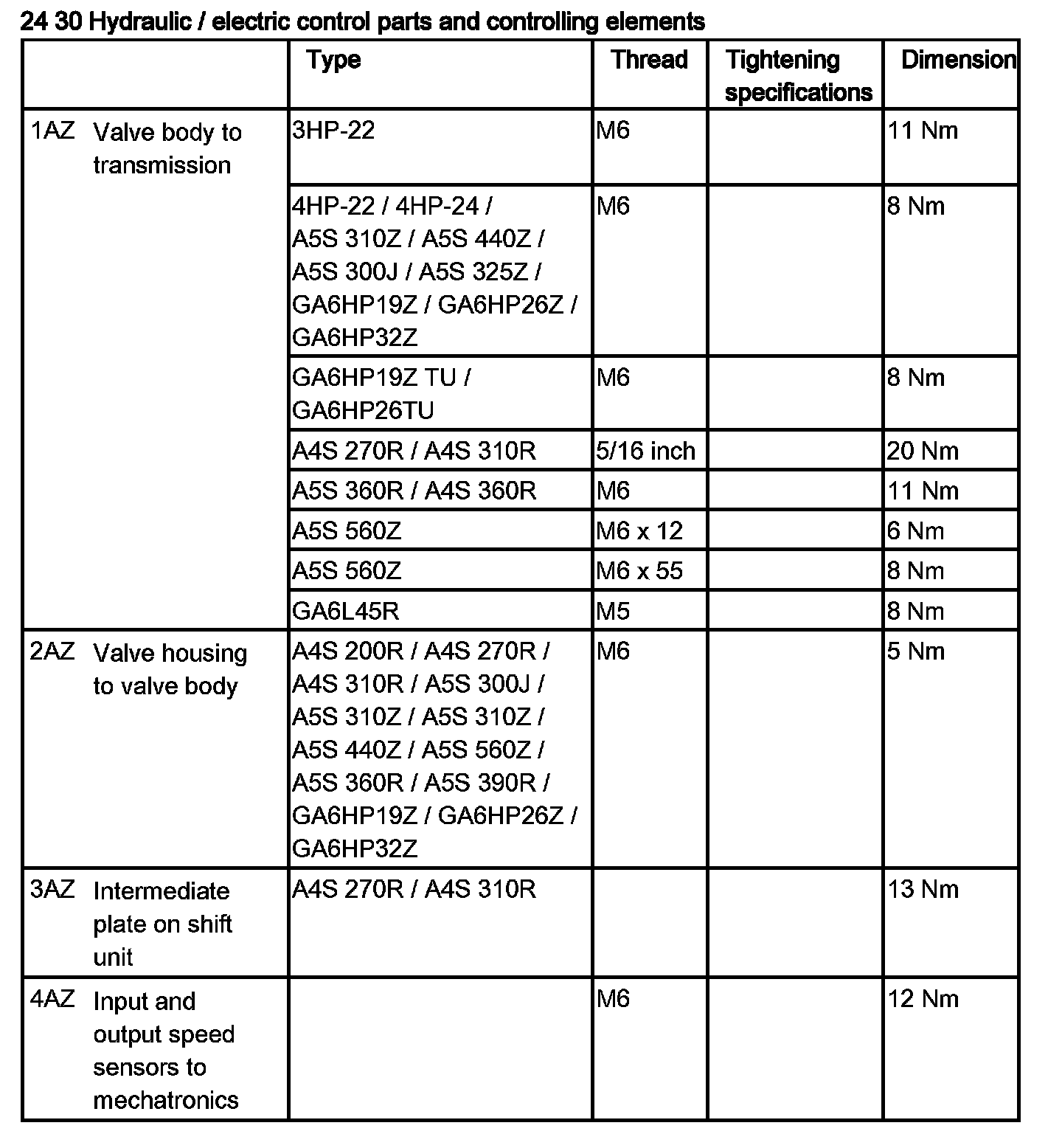

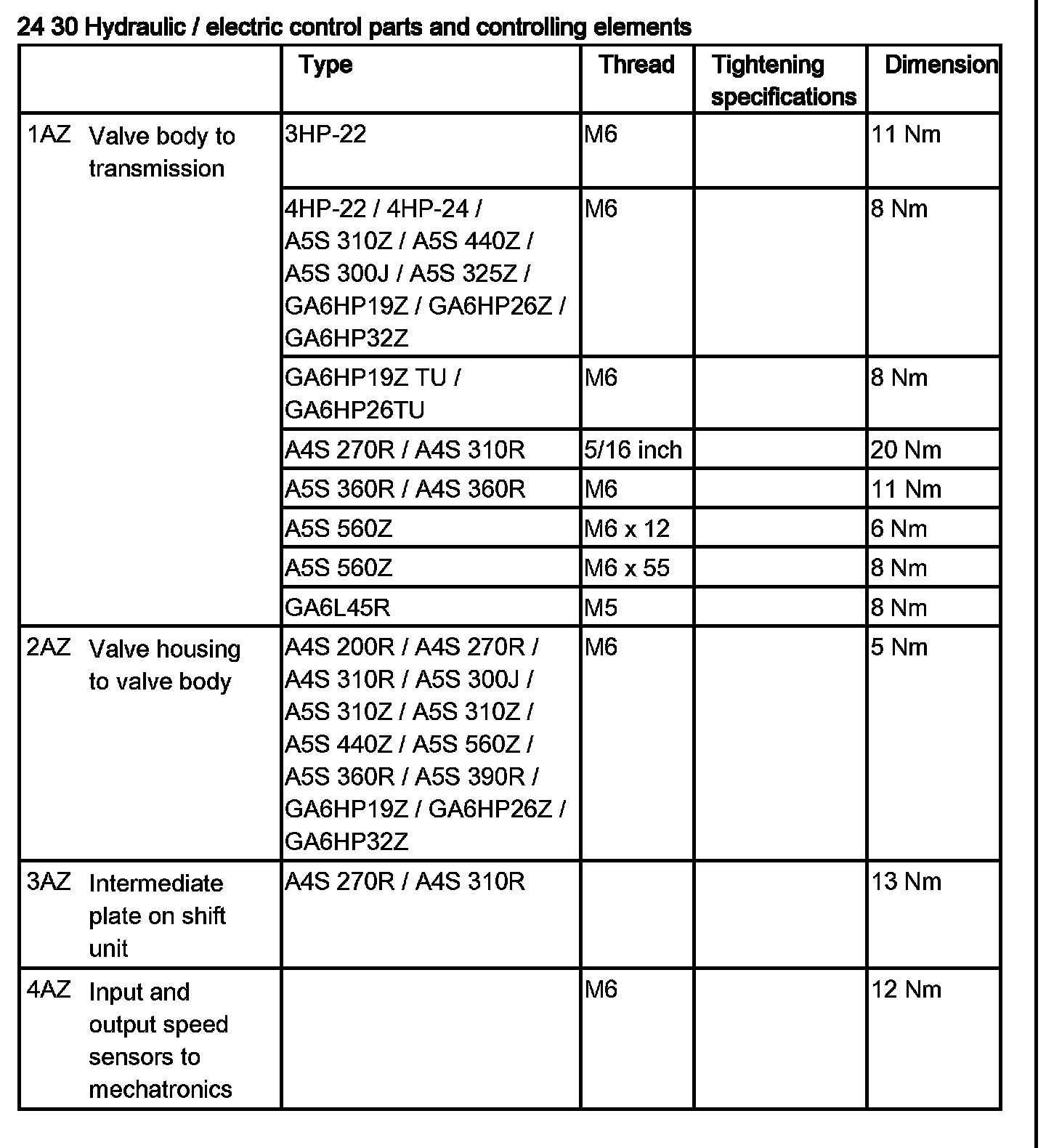

Tightening torque 24 30 4AZ.
