Home >> BMW >> 2006 >> 325xi Wagon AWD (E91) L6-3.0L (N52) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connectors From X6 >> X60233 >> A60233 Electronic Power Steering (EPS) (Up to 03/05)

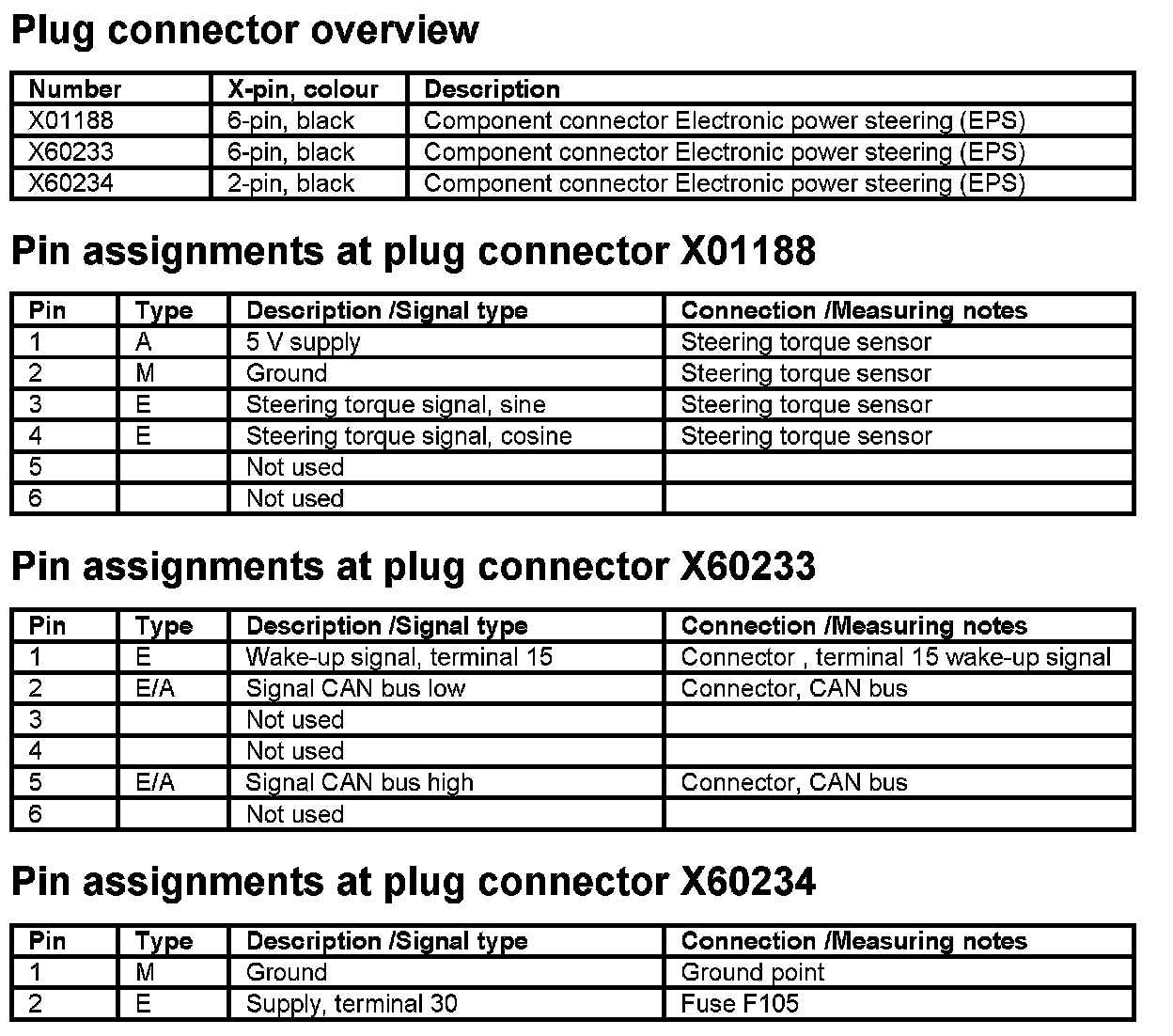

A60233 Electronic Power Steering (EPS) (Up to 03/05)



X60233







A60233 Electronic Power Steering (EPS)
