Connectors From X7
>>
X74
>>
A12 Multiple Restraint System Control Unit (MRS Multiple Restraint System III/IV As of 09/99)
A12 Multiple Restraint System Control Unit (MRS Multiple Restraint System III/IV As of 09/99)

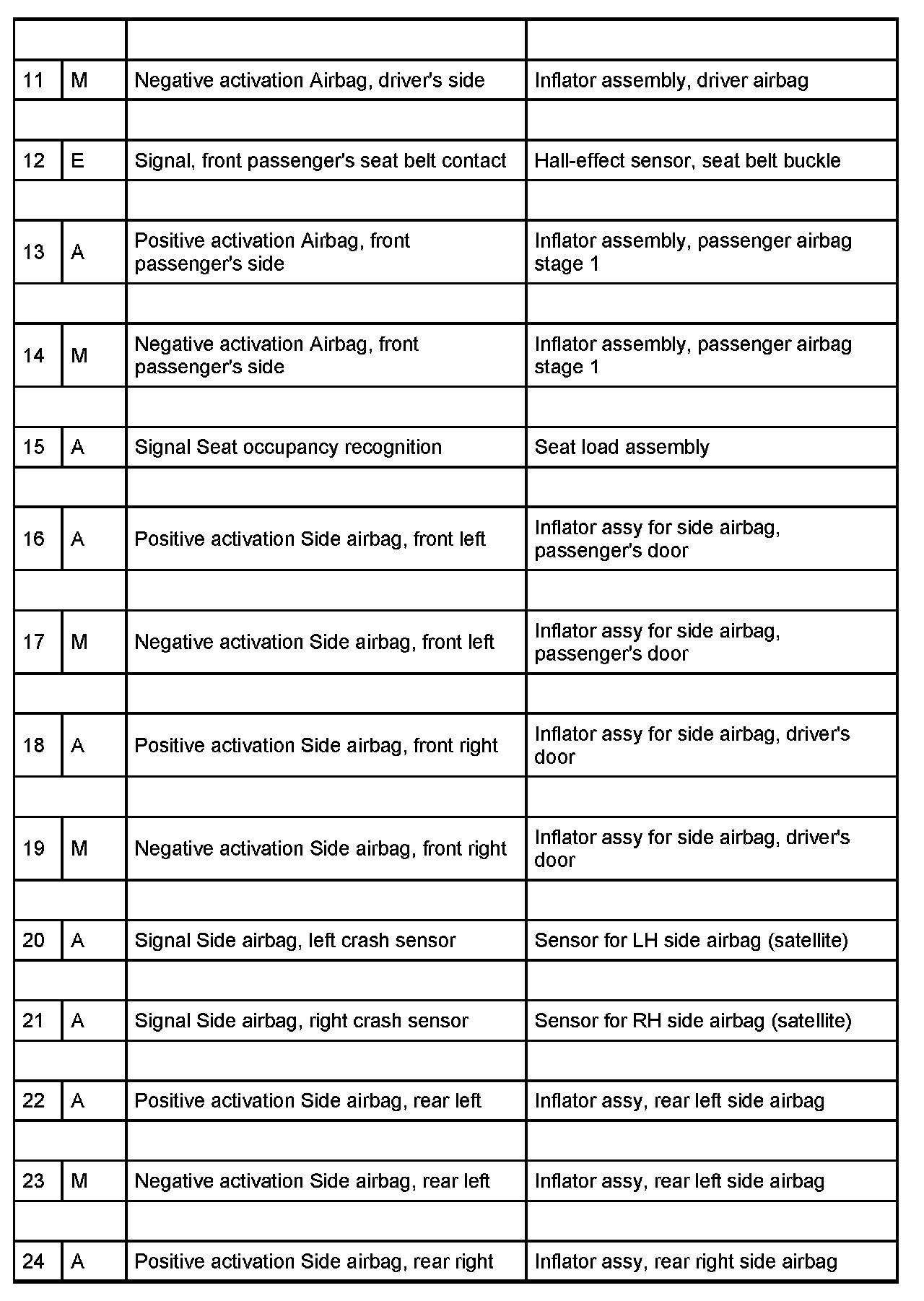

X74 - Part 1:
X74 - Part 2:
X74 - Part 3:
X74 - Part 4:
