Removing and Installing/Replacing Window Cavity Cover Strip on Inner Front Door

51 21 330 - Removing and installing/replacing window cavity cover strip on inner front door





Necessary preliminary tasks:
- Remove front door trim panel

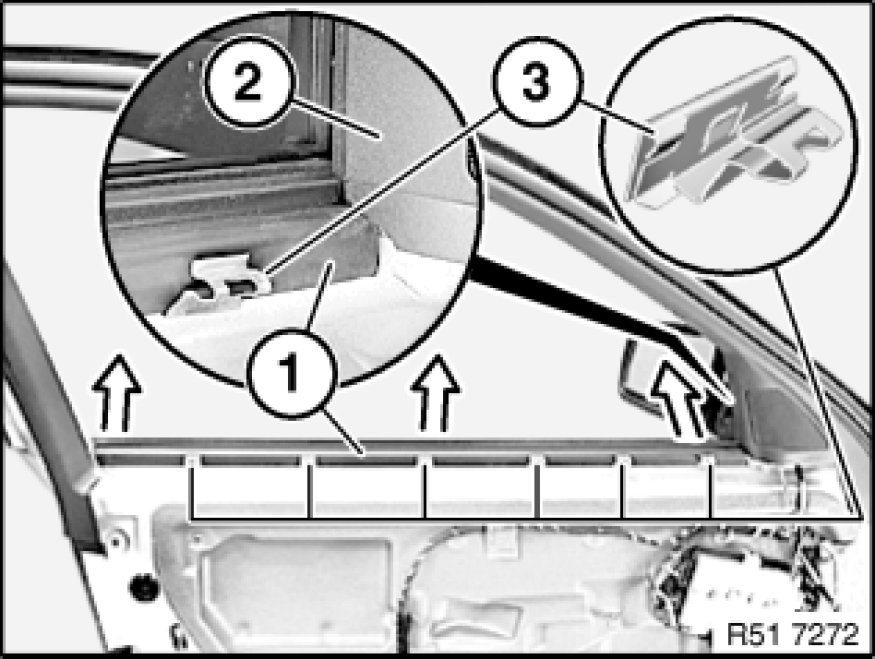

Lever out cover (1) at rear slightly.
Start at rear with removal of window cavity cover strip (2).





Pull off window cavity cover strip (1) towards top.
Replacement with Security version:
Cut window cavity cover strip (1) to length on B-pillar side to 680 mm.

Installation Note:
If necessary, replace faulty clips (3).
Insert window cavity cover strip (1) below cover (2).





Installation Note:
Coat window cavity cover strip (1) with water before fitting.
Start with installation at front.
