51 16 383 Removing and Installing/Replacing Damper for Glovebox

51 16 383 - Removing and installing/replacing damper for glovebox





Necessary preliminary tasks:
- Remove glovebox with housing 51 16 366 Removing and Installing Right Glovebox With Housing





Open glovebox.
Release clip (1).





Press catch (1) together and slide damper (2) in direction of arrow.
Remove damper (2) in inward direction.






Installation:

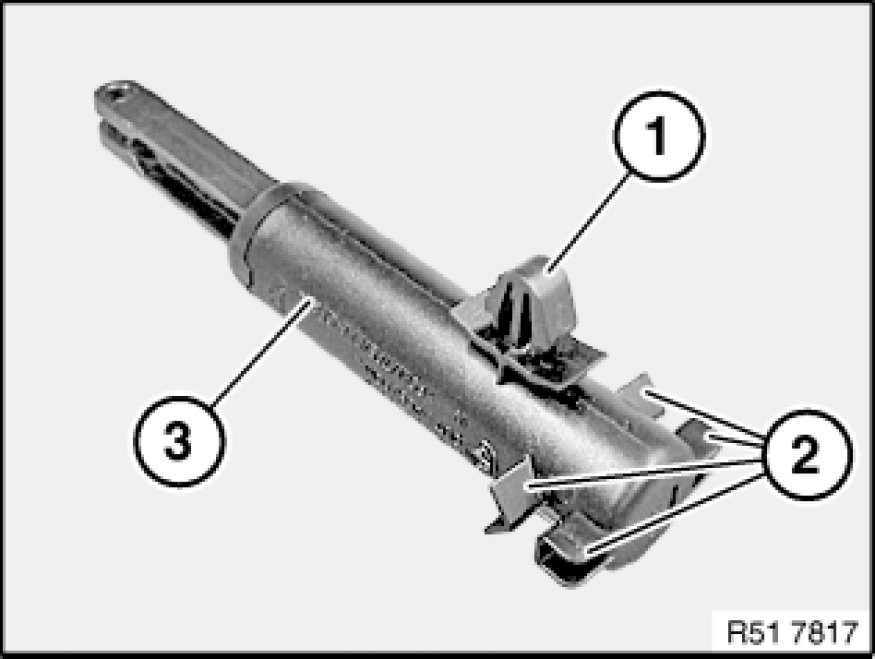

Catch (1) and guide (2) on damper (3) must not be damaged or missing.
