Removing and Installing/Replacing Sensor for Automatic Recirculated Air Control (Build Date From 03/07)




64 11 991 - Removing and installing/replacing sensor for automatic recirculated air control (build date from 03/07)

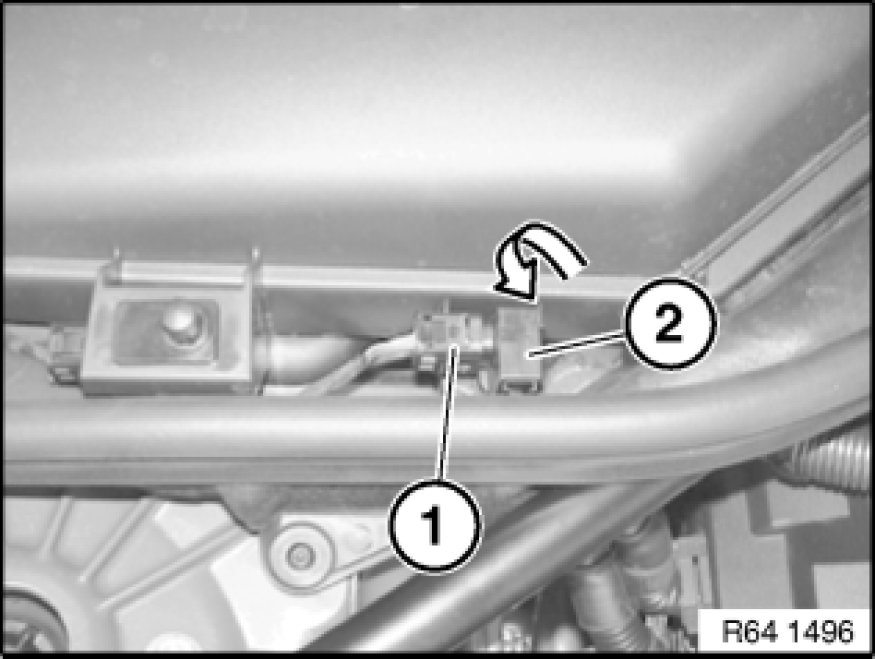

Disconnect plug connection (1).
Unlock sensor (2) in direction of arrow and remove.

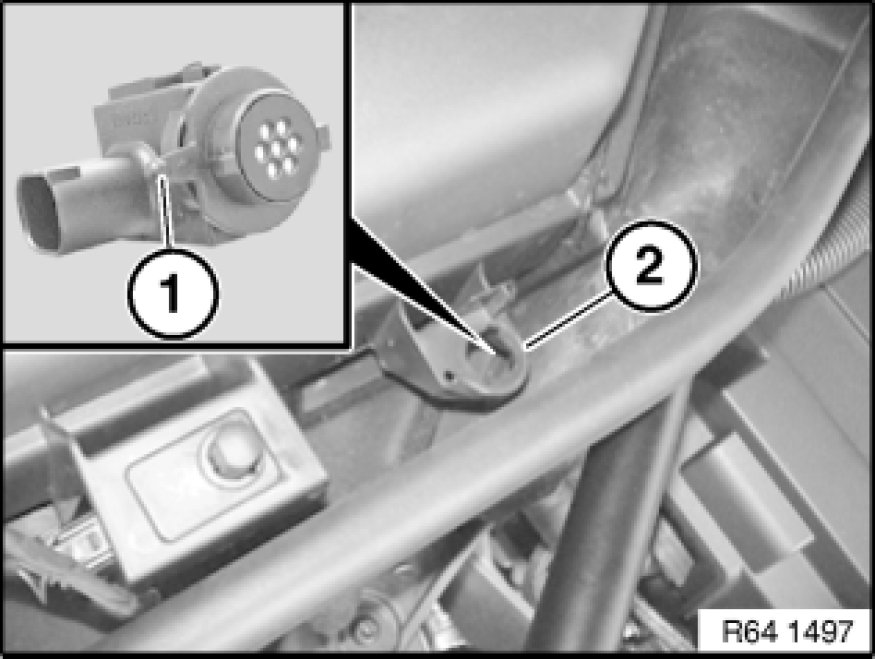

Lug (1) must not be damaged.

Installation:
Make sure sensor is correctly seated in guide (2).
