Air Bag Control Module: Service and Repair

65 77 016 Removing And Installing/Replacing Airbag Control Unit







IMPORTANT: Read and comply with notes on protection against electrostatic discharge (ESD protection).







WARNING:
Note airbag safety instructions.
Incorrect handling can activate airbag and cause injury.







Necessary preliminary tasks:
- E72: Disconnect both battery earth cables
- Disconnect battery negative lead and cover
- Remove complete centre console
- Remove rear cabin ventilation duct

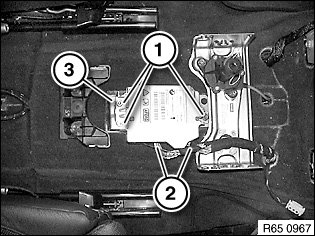

Unscrew nuts (1).

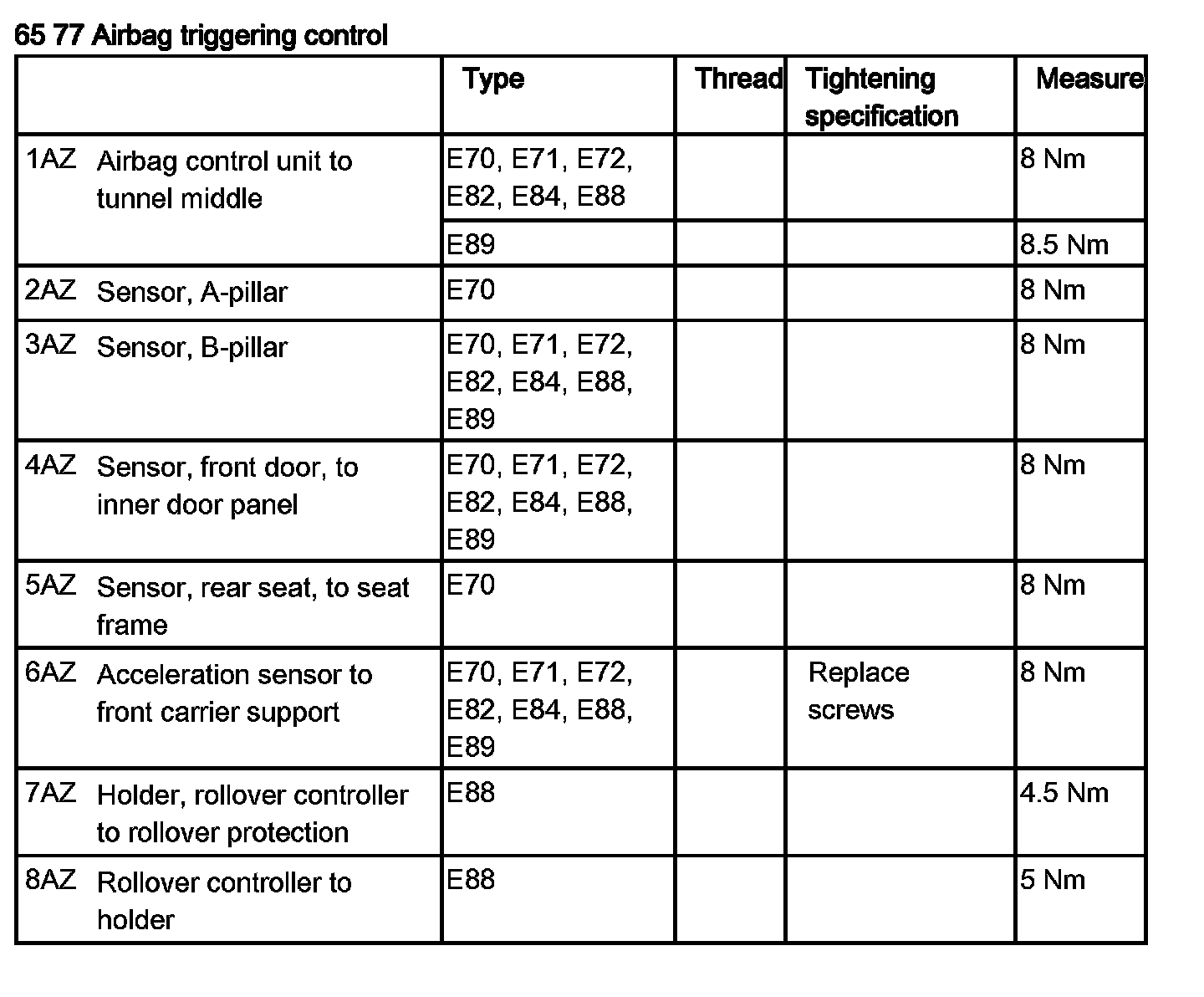

Tightening torque 65 77 1AZ.
Disconnect plug connections (2).

Installation:
Make sure ground cable (2) is correctly laid.
If necessary, replace damaged cable shoe on ground cable (2).







Replacement:
Carry out programming/encoding.
