Fogging Sensor: Service and Repair
64 11 970 - Replacing fogging sensor (up to 10/08)Necessary preliminary tasks: -
Remove two-part mirror base cover

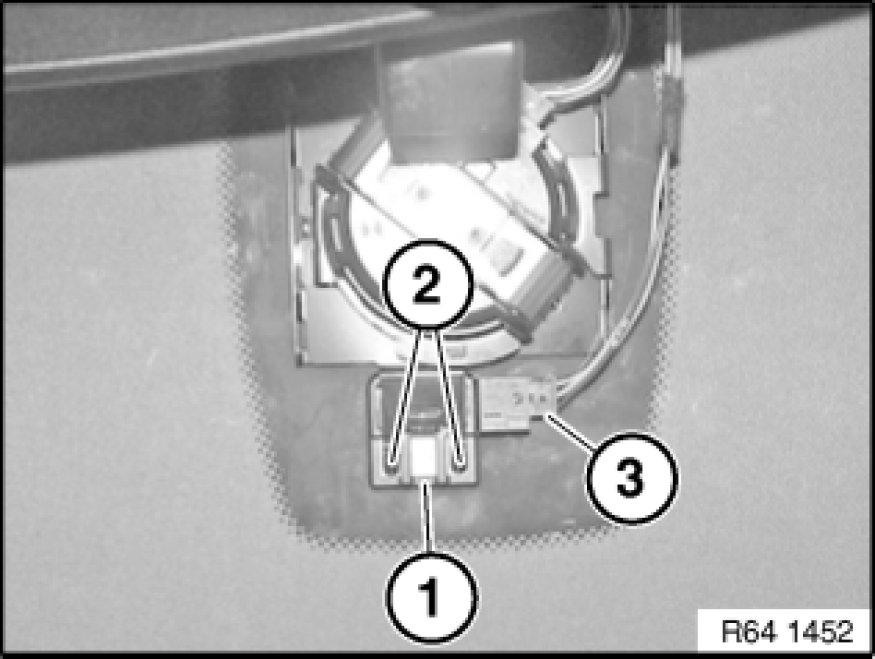

Unclip
fogging sensor (1) from retaining tabs (2).
Disconnect plug connection (3).

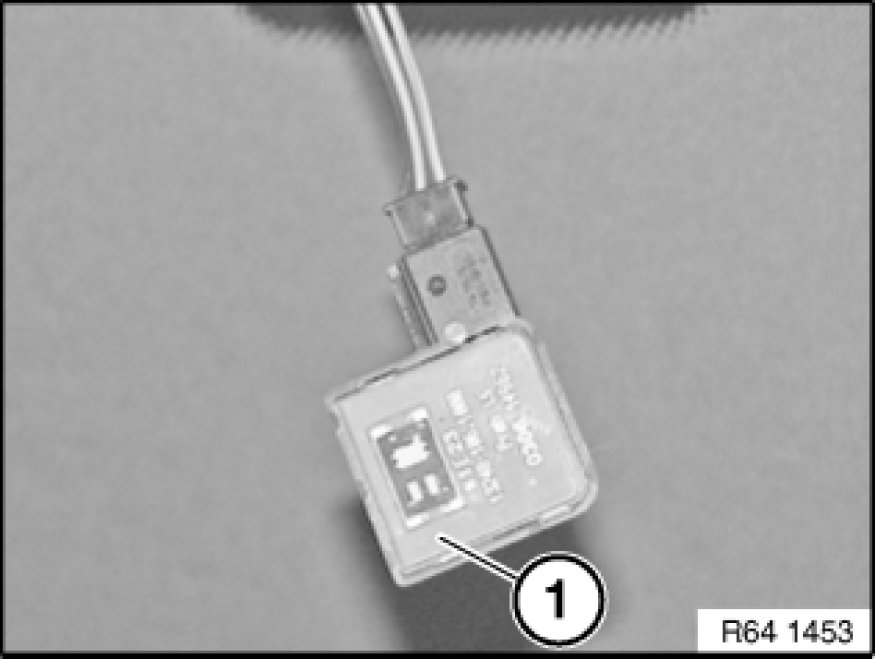

Installation: Make sure
fogging sensor (1) is securely seated.
Installation: Sensor surface (1) must be clean and free from grease.
