Starting System: Testing and Inspection



Comparison Images Radio-Control Key Slot

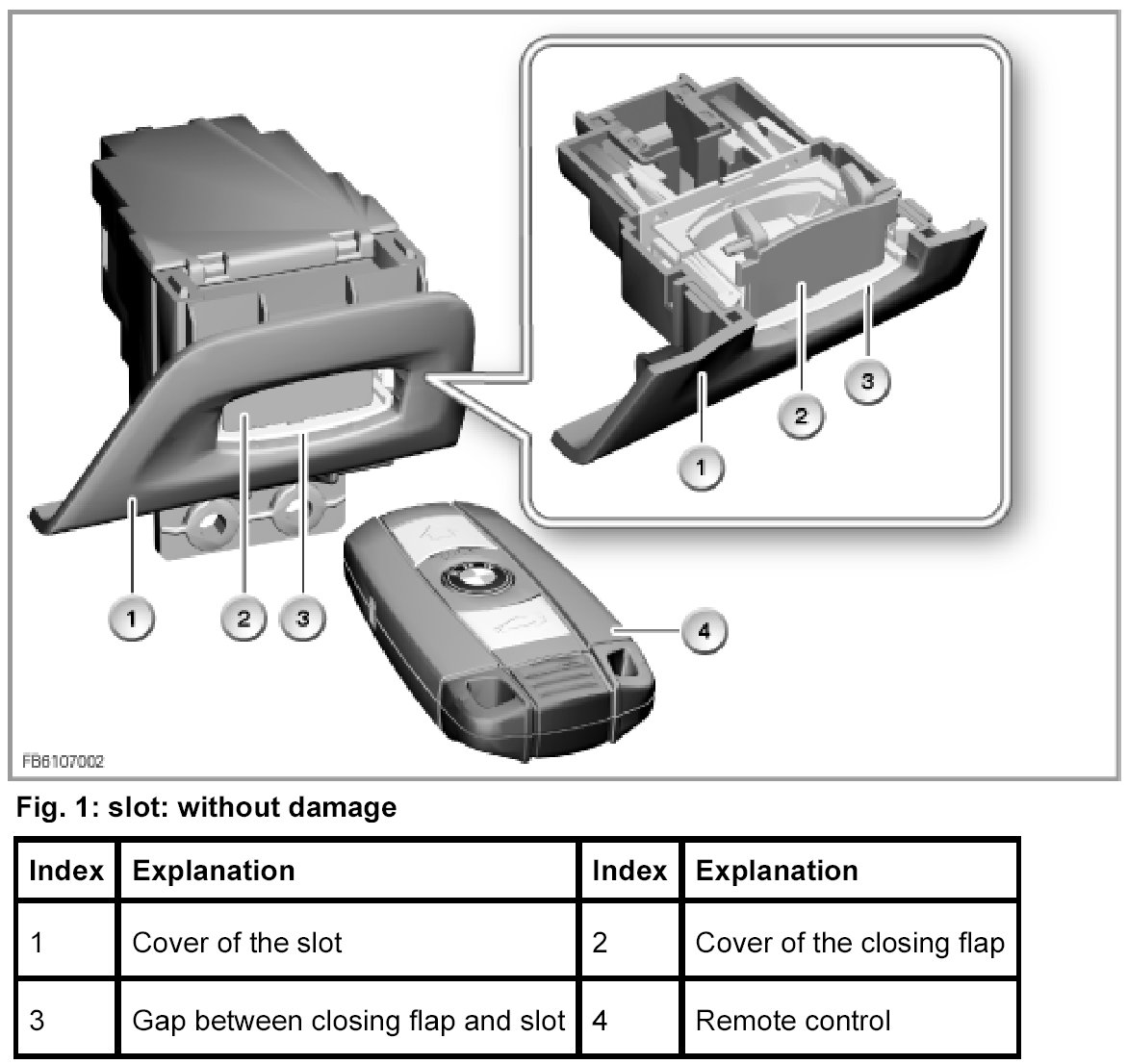

Fig. 1: slot: without damage

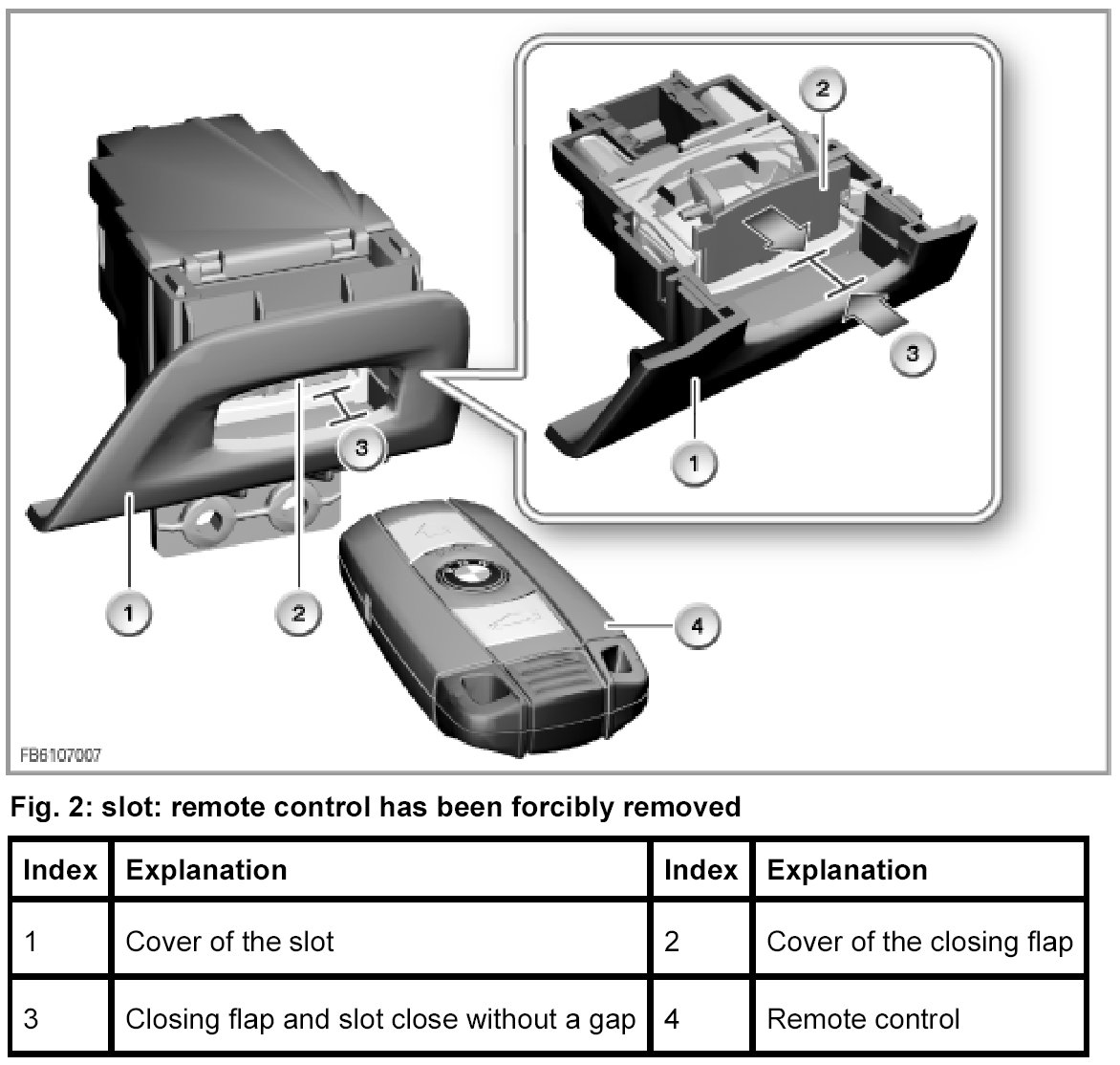

Fig. 2: slot: remote control has been forcibly removed

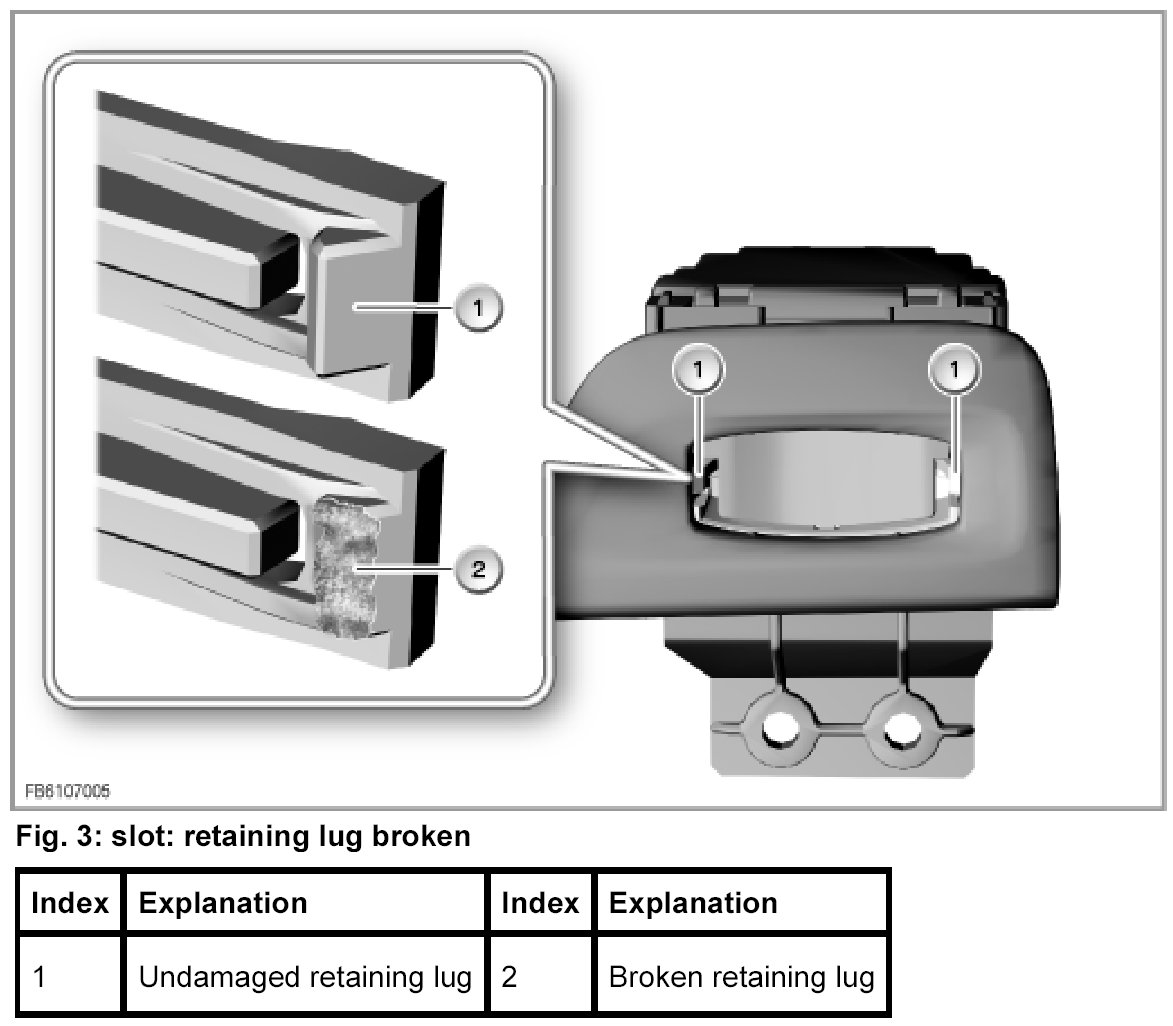

Fig. 3: slot: retaining lug broken
