Traction Control Module: Testing and Inspection



Comparison Images Of Speed Signal

IMPORTANT: During the measurement, the Dynamic Stability Control control module must be plugged in.

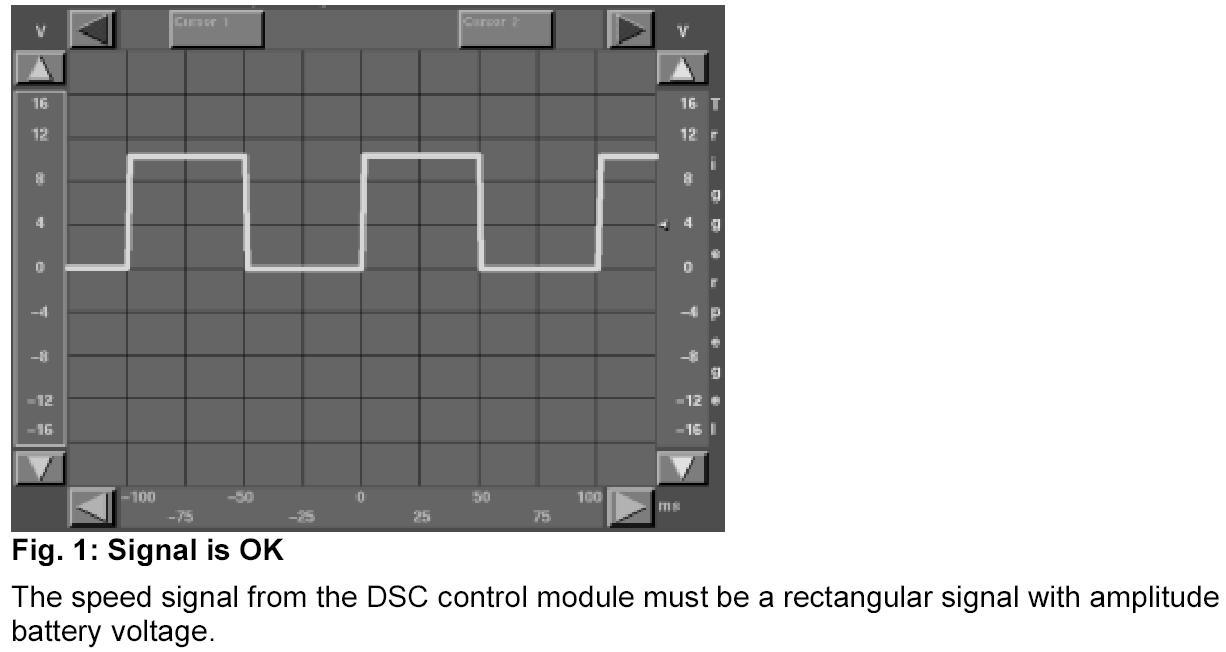

Signal Is OK:

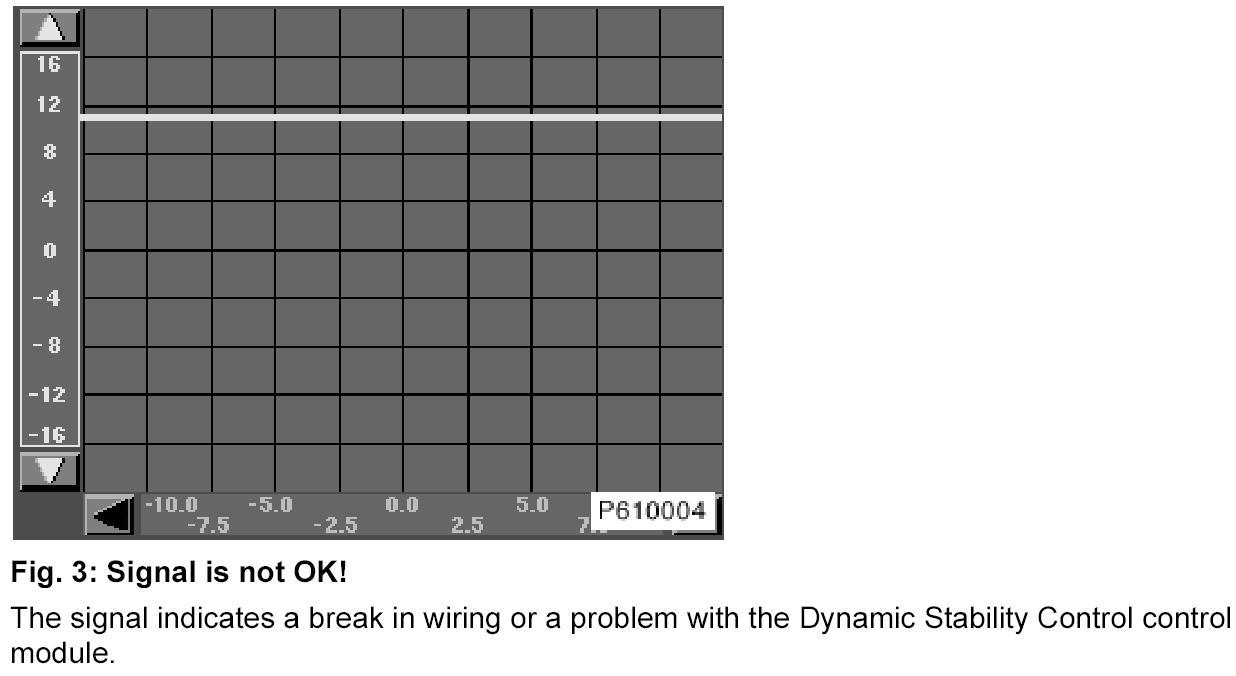

Signal Is Not OK:

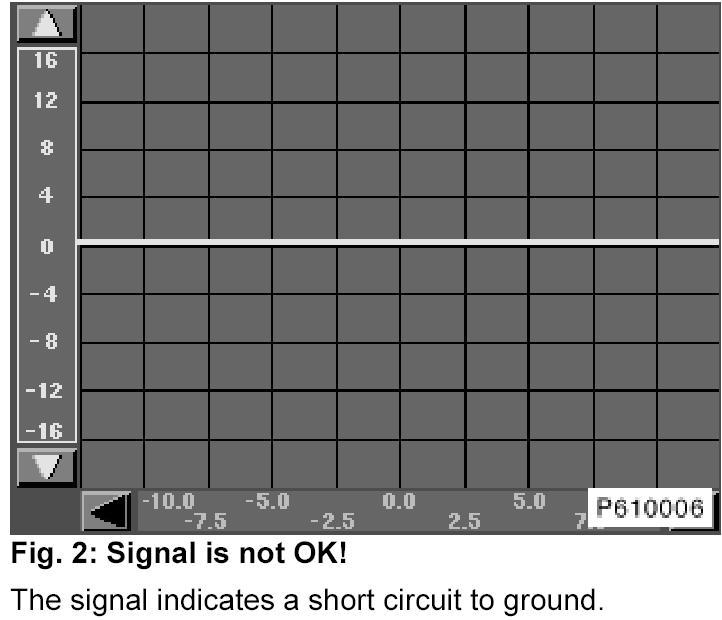

Signal Is Not OK:
