Removing and Installing/Replacing Long Range Sensor (LRR Sensor) (From Build Date 03/07)




66 31 016 - Removing and installing/replacing long range sensor (LRR sensor) (from build date 03/07)





Special tools required:
- 00 9 317 00 9 317 Trim Panel Wedge

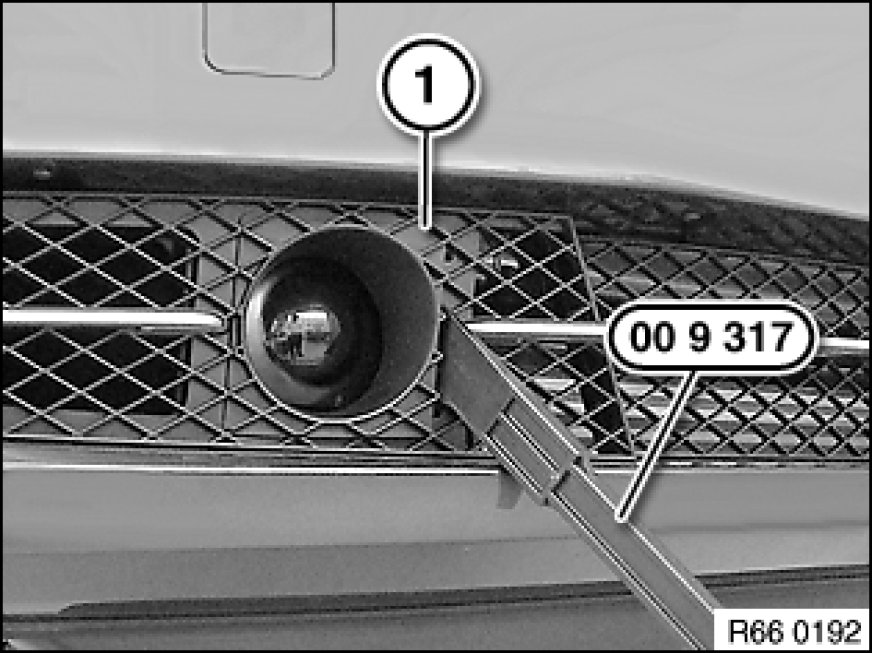

Lever out trim (1) with special tool 00 9 317 00 9 317 Trim Panel Wedge and remove.

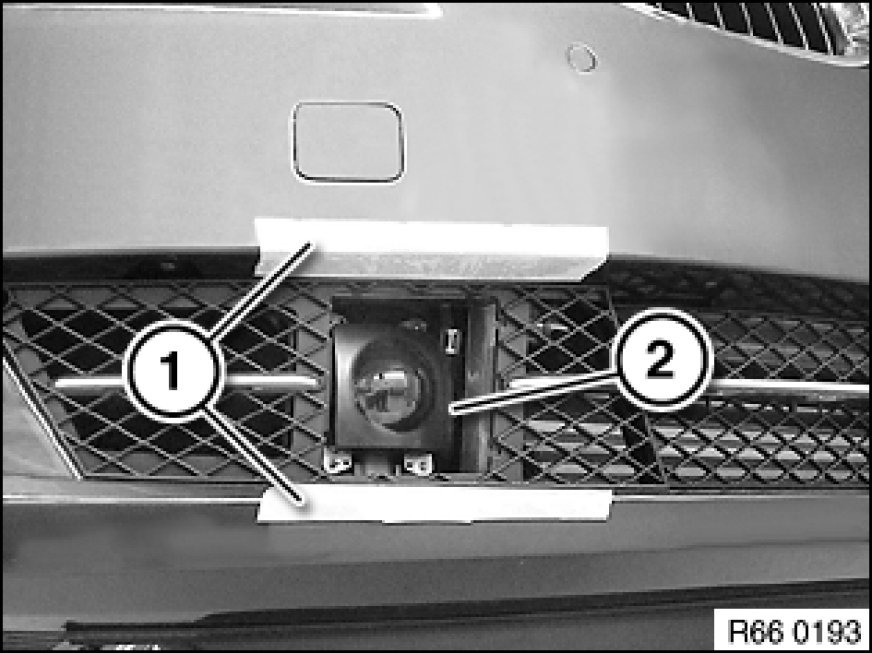

Tape off bumper in working area (1) with yellow plastic adhesive tape.

Unclip long range sensor (2) from mounting.

Installation:
Make sure long range sensor (2) is correctly seated.

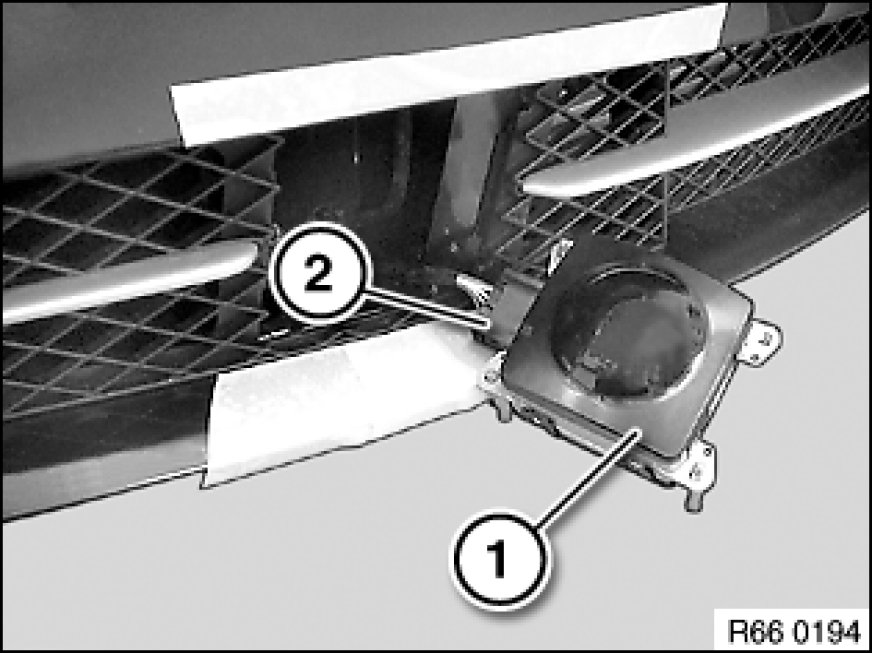

Secure long range sensor (1) against falling out.

Disconnect plug connection (2) and remove long range sensor (1).





Replacement:

- Carry out LRR sensor adjustment using BMW diagnosis system.
- Carry out programming/coding Programming and Relearning.
