65 12 250 Removing and Installing/Replacing Headphones Module



65 12 250 Removing And Installing/Replacing Headphones Module







IMPORTANT: Read and comply with notes on protection against electrostatic discharge (ESD protection).







NOTE: Follow instructions for handling optical fibres.







Necessary preliminary tasks:
- E72 Only: Disconnect Both negative battery cables
- Disconnect battery negative lead
- Remove video module

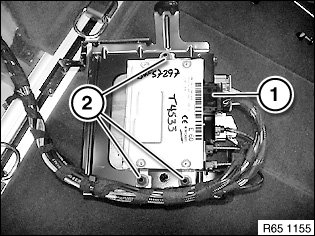

Disconnect plug connection (1).
Release nuts (2) and remove headphones module.
