52 16 ... Replacing Padding For Front Seat Thigh Support

52 16 ... Replacing Padding For Front Seat Thigh Support

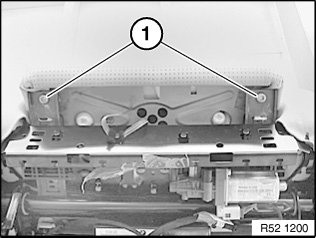

Release screws (1).

Installation:
Insert screws (1) with Loctite.

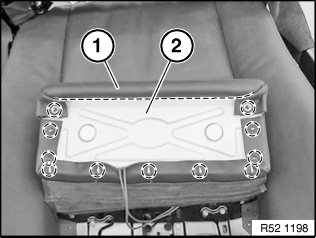

Unhook seat cover (1) from marked area.
Remove carrier (2) for thigh support.

For seat heating optional extra only:

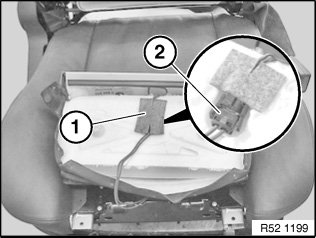

Carefully detach felt (1) from thigh support. Unfasten plug connection (2) and disconnect.

Installation:
Ensure correct cable routing.

Remove padding from cover.
