Data Link Connector: Service and Repair

61 13 ... Removing And Installing/Replacing OBD-II Socket

Special tools required:







Necessary preliminary tasks:
- Remove pedal assembly trim

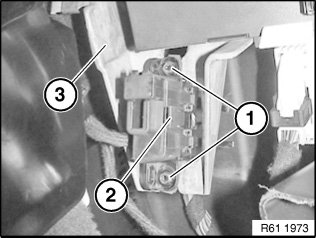

Release screws (1).
Remove OBD II socket (2) from instrument panel carrier (3).







Remove OBD II socket cover (2) from OBD-II socket (1).

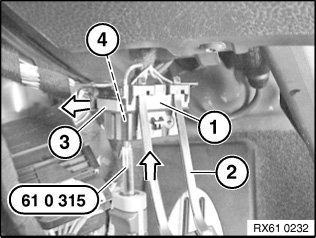

Unlock slide plate (3) with a suitable tool in direction of arrow.
Insert special tool 61 0 315 into OBD-II socket (1) in the direction of the arrow and press out the associated flat spring contact (4). Press remaining flat spring contacts out of OBD-II socket (1) with special tool 61 0 315.

Installation:
Pay attention to pin assignment of OBD-II socket (1).
Make sure flat spring contacts and slide plate (3) are correctly engaged and seated in OBD-II socket (1).
